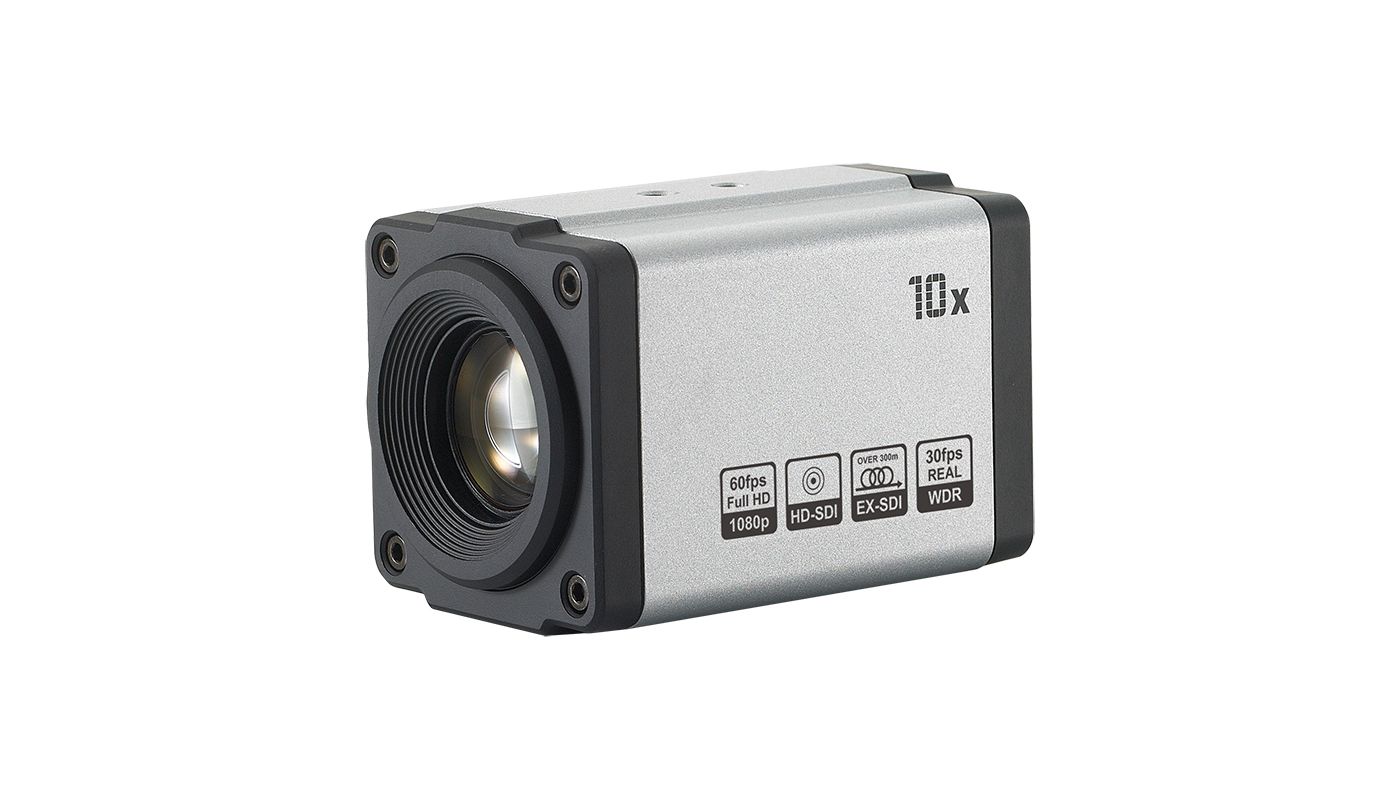

eneo MPC-52A0010M0A

SKU 233051

No longer available
Successor: MPC-52A0010M0B

1/3" HD Camera, 1920x1080, 10x AF Zoom 5,1-51mm, T-WDR, HD-SDI, EX-SDI, TVI, Composite

Specifications

Brand
eneo
Manufacturer order number
233051

Camera

Backlight compensation
Yes
Camera shape
Zoom cameras
Chip size
1/3"
Day/night mode
Automatic,Day,Night,extern (Sensor)
Day/night switching
Switchable IR Filter (ICR)
Flickerless function
Yes
Low Speed Shutter
Yes
Photosensitivity
0,5 Lux bei F1,6,50 IRE
Recording sensor
CMOS
Signal-to-noise ratio
50 dB
System
True Day&Night
White balance
AUTO,One push,Manual,Indoor,Outdoor

DORI

Detect (125px/m)
15,2 - 150,3 m
Identify (250px/m)
7,5 - 75,5 m
Perceiving (25px/m)
78 - 763 m
Watch (63px/m)
31,3 - 302,4 m

Lens

Aperture Range (F)
F1.6~F1.8
Focal length
5,1 - 51 mm
Horizontal angle of view
54 - 4,9°
Lens Type
Auto Focus Zoom
Vertical angle of view
31 - 4,0°
Zoom Factor (Digital)
0
Zoomfactor (optical)
10

Video

Horizontal resolution
700 TVL
Signal Format
Composite (FBAS), EX-SDI @ 2MP, HD-SDI @ 2MP, HD-TVI @ 2MP

Display

Image resolution max.
1920x1080,1280x720

Functions

Analysis
Motion Detection
Digital Noise Reduction (DNR)
Yes
Menu languages
Chinese, English, Japanese
Motion detector
Yes

Interfaces / Inputs/ Outputs

Control Interfaces
Coaxitron (HD Protocol), RS-485
External connections
1x SDI Signal (BNC),1x HD/SD Analog Signal (BNC),12VDC power input,RS-485,external day&night switching,Alarm output
Interface Protocols
Pelco D, Pelco P, UTC (HD Signal Format)
Number of alarm outputs
1
Video Outputs
Composite (FBAS)

General

Color (Housing)
silvermetallic,black
Dimensions (WxHxD) (extended)
62x59x100mm
Housing material
Aluminium
Housing type
Inside
Lighting
No
Power consumption
3 W
Power supply
12VDC
Temperature Range (Operating)
-10°C ~ +50°C
Text overlay
available
Weight
0.42 kg
Wide Dynamic Range (WDR)
WDR 120dB

Parts supplied

Scope of delivery
manual

Main Features

  • 1/3" 2,0 Megapixel Panasonic CMOS-Sensor
  • Resolution max. 1920x1080, 1080p@60/50fps
  • Optical 10x Auto Focus Zoom, 5,1~51mm
  • Multisignal Output HD-SDI, EX-SDI, TVI, Composite
  • Real time True WDR
  • Digital Noise Reduction(2D+3D)
  • Digital Image Stabilization
  • Privacy Masking, Defog
  • Slow Speed Shutter
  • Compact Housing
  • Power Supply 12VDC
