eneo ISM-72M2713W0A
SKU 234669No longer available

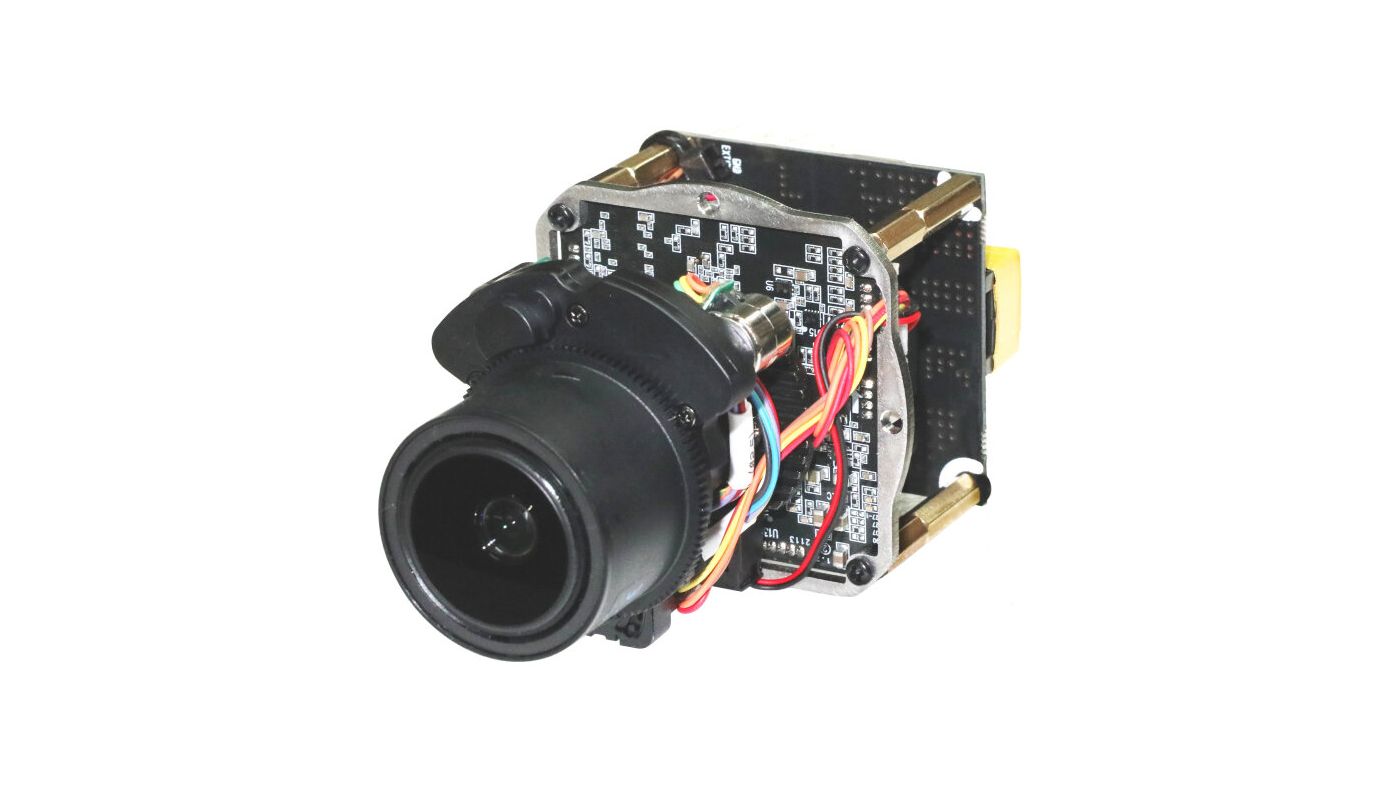

1/2.8" Network Module Camera, 1920x1080, Day&Night, WDR, 2.7-13.5mm, H.265, PoE, 12VDC
discontinued
Specifications
- Brand
- eneo
- Manufacturer order number
- 234669
- Series
- eneo AN-Serie
Camera
- Backlight compensation
- Yes
- Camera shape
- Printed circuit board
- Chip size
- 1/2,8"
- Day/night mode
- Automatic,Day,Night,extern (Sensor)
- Day/night switching
- Switchable IR Filter (ICR)
- Flickerless function
- Yes
- Low Speed Shutter
- Yes
- Photosensitivity
- 0,0008 Lux bei F1,6,40 IRE
- Recording sensor
- CMOS
- Resolution standard
- 2 MP
- Signal-to-noise ratio
- 50 dB
- System
- True Day&Night
- White balance
- Automatic,Outdoor,Light bulb,Fluorescent light,Clear Sky,Shade,Manual
DORI
- Detect (125px/m)
- 8,2 - 40,1 m
- Identify (250px/m)
- 3,9 - 20,1 m
- Perceiving (25px/m)
- 44 - 198 m
- Watch (62px/m)
- 16,6 - 80,5 m
Lens
- Focal length
- 2,7 - 13,5 mm
- Horizontal angle of view
- 108 - 32°
- Lens Type
- Varifocal (motorized)
- MOD (Minimum Object Distance)
- 0.5 m
- Vertical angle of view
- 56 - 18°
- Zoom Factor (Digital)
- 0
- Zoomfactor (optical)
- 4
Video
- Data stream types
- Multi-Streaming
- Image transfer rate max.
- 30 fps
- Resolution (extended)
- 1920x1080 (16:9),1280x720 (16:9)
- Video Compression
- H.264, H.264+, H.265, H.265+, M-JPEG
Display
- Image resolution max.
- 1920x1080
Functions
- Alarm processing
- E-Mail,HTTP,FTP,Boost,TCP,UDP,Onvif Event Mapping
- Analysis
- Manipulation (TD), Motion Detection
- Audio support
- No
- Browser
- Edge: MJPEG, Mozilla: MJPEG, Safari: MJPEG
- Digital Noise Reduction (DNR)
- Yes
- Menu languages
- English, French, German, Korean
- Motion detector
- Yes
- Multicast
- Yes
- Password
- Administrator and User
Interfaces / Inputs/ Outputs
- Alarm inputs
- 0
- Control Interfaces
- Ethernet
General
- Camera Type
- Board Camera
- Dimensions (WxHxD) (extended)
- 93x50x50mm
- Housing type
- without housing
- Mounting type
- Installation
- ONVIF
- ONVIF Profile S, ONVIF Profile T
- Power consumption
- 4.4 W
- Power over Ethernet
- IEEE 802.3af
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -20°C ~ +50°C
- Text overlay
- available
- Weight
- 0.16 kg
- Wide Dynamic Range (WDR)
- D-WDR
Parts supplied
- Scope of delivery
- manual,Connection cable set
Notes
- Remark
- NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necess
Main Features
- 1/2.8" Sony STARVIS CMOS Sensor
- Excellent light sensitivity
- Resolution max. 1920x1080 (Full HD)
- Motorised varifocal lens 2.7~13.5mm
- DOL-WDR (120dB) by triple scan images at 30/25fps
- Motion Detection, Privacy Zones, Slow Shutter
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Smart Codec H.265 ROI (Region of Interest)
- Supports ONVIF Profile S and Profile T
- Operating temperature -20°C ~ +50°C
- Dimensions 50x50x93mm
- Power supply PoE or 12VDC
