ISM-68F0028W0A
SKU 232564No longer available

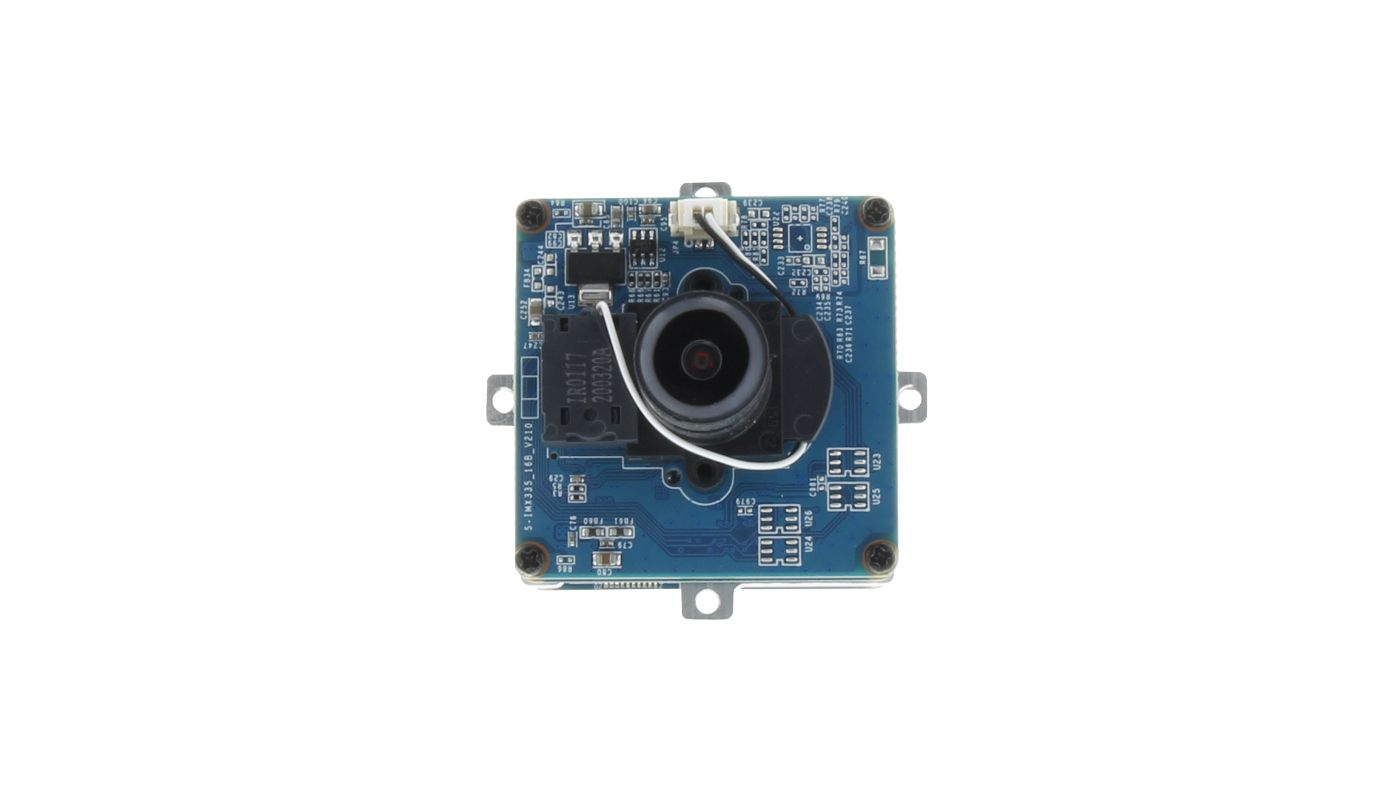

1/2,8" Netzwork Board Camera 3840x2160, Day/Night, WDR, 2,8mm, H.265, PoE, 12VDC
discontinued
Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 232564 |
|---|
| Alarm inputs | 1 |
|---|---|
| Alarm processing | alarm out,FTP,E-Mail |
| Audio | 2 Way Audio |
| Audio support | Yes |
| Backlight compensation | No |
| Brand | eneo |
| Browser | Edge: MJPEG, Google Chrome: Java, Mozilla: MJPEG, MS Internet Explorer 11, Safari: MJPEG |
| Camera Type | Board Camera |
| Camera shape | Printed circuit board |
| Chip size | 1/2,8" |
| Control Interfaces | Ethernet |
| Data stream types | Multi-Streaming |
| Day/night mode | Automatic,Day,Night,Time |
| Day/night switching | Switchable IR Filter (ICR) |
| Detect (125px/m) | 8.1 m |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | siehe Maßzeichnung |
| External connections | 12VDC power input,Alarm in/output,Audio in/output,RJ-45 |
| Flickerless function | Yes |
| Focal length | 2,8 mm |
| Heating | Yes |
| Horizontal angle of view | 100° |
| Housing type | without housing |
| Identify (250px/m) | 8.1 m |
| Image resolution max. | 3840x2160 |
| Image transfer rate max. | 30 fps |
| Integrated wall mount | No |
| Internal memory | no |
| Lens Type | Prime lens |
| Lighting | no |
| Low Speed Shutter | No |
| MOD (Minimum Object Distance) | 0.5 m |
| Menu languages | English, German |
| Motion detector | No |
| Mounting type | Built-in module, Built-in module |
| Multicast | Yes |
| ONVIF | ONVIF Profile S |
| Password | Administrator and User |
| Perceiving (25px/m) | 90.7 m |
| Photosensitivity | 0,004 Lux bei F2,0 |
| Power over Ethernet | IEEE 802.3af |
| Power supply | 12VDC, Poe |
| Recording sensor | CMOS |
| Remark | NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necess |
| Resolution (extended) | 3840x2160 (16:9),2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),2048x1536 (4:3),1920x1080 (16:9),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),704x576 (4:3),704x480 (4:3),640x |
| Resolution standard | 8 MP |
| Scope of delivery | manual,Connection cable set |
| Signal-to-noise ratio | 50 dB |
| Sunshade canopy | No |
| System | True Day&Night |
| Temperature Range (Operating) | -20°C ~ +50°C |
| Text overlay | available |
| Vandalism-resistant | No |
| Video Compression | H.264, H.265 |
| Watch (62px/m) | 36.8 m |
| White balance | ATW,Manual |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Wiper | No |
Main Features
- 1/2.8" Sony STARVIS CMOS Sensor
- Excellent light sensitivity
- Resolution max. 3840x2160 (4K)
- Lens fixed focal length 2.8mm
- WDR (120dB), BLC, 3DNR
- Tripple Streaming (H.265, H.264, MJPEG)
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Object classification (person, car, bike)
- Supports ONVIF Profile S
- Operating temperature -20°C +50°C
- Dimensions 50x50x59mm
- Power supply PoE or 12VDC
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Quick reference guide for this product (multilingual)
-
Quick reference guide for this product (multilingual)
-
Manual for this product (english)
-
Product image in a high resolution
-
Declaration of conformity (german and english)
