ISM-65F0028W0A
SKU 232563

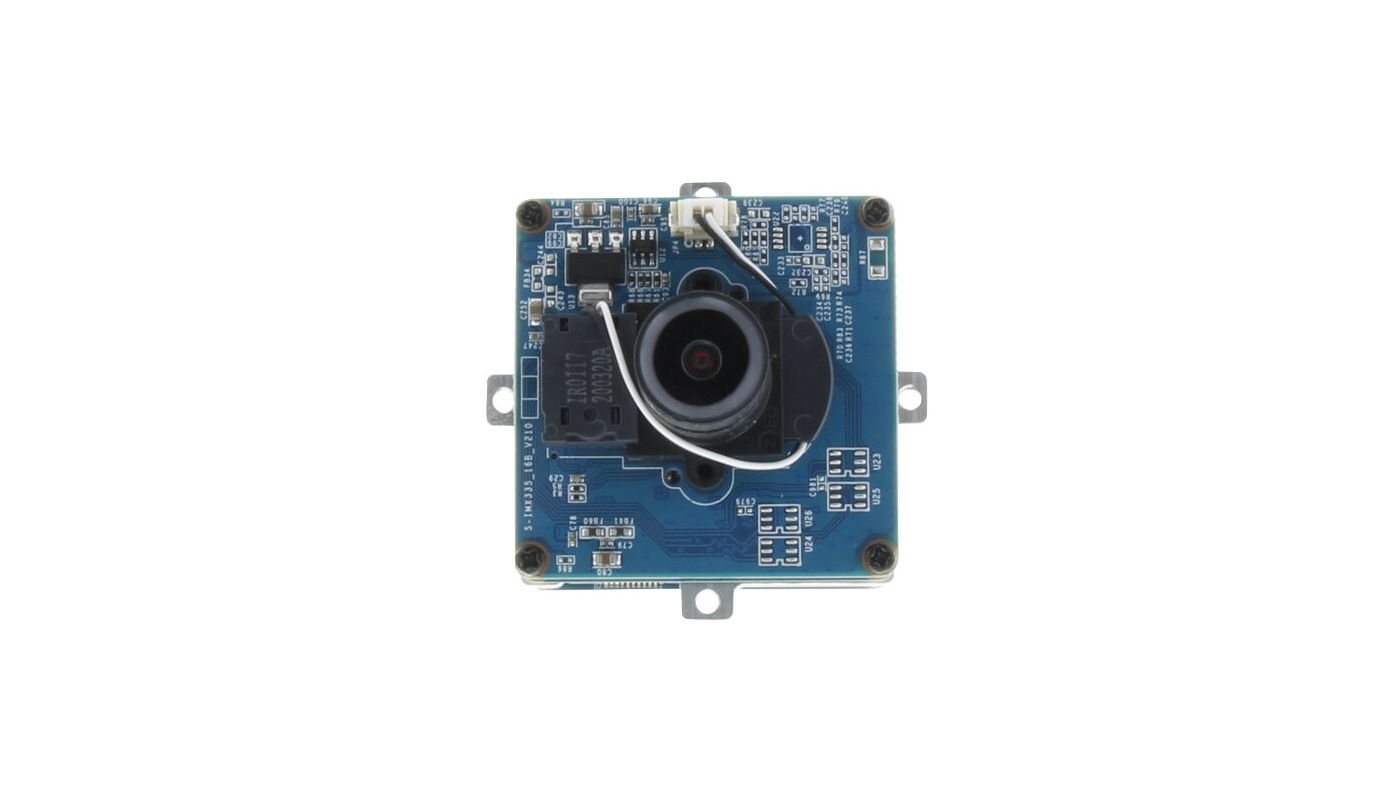

1/2,8" Network Board Camera 2592x1944, Day/Night, WDR, 2,8mm, H.265, PoE, 12VDC
For Prices and Availability please login.
phased-out
Specifications
- Manufacturer order number
- 232563
- Brand
- eneo
Camera
- Camera shape
- Printed circuit board
- Chip size
- 1/2,8"
- Resolution standard
- 5 MP
- Recording sensor
- CMOS
- Photosensitivity
- 0,003 Lux bei F1,6
- System
- True Day&Night
- Flickerless function
- Yes
- Day/night switching
- Switchable IR Filter (ICR)
- Day/night mode
- Automatic,Day,Night,Time
- White balance
- ATW,Manual
- Signal-to-noise ratio
- 50 dB
Video
- Resolution (extended)
- 2592x1944 (4:3),2592x1520 (16:9),2304x1296 (16:9),2048x1536 (4:3),1920x1080 (16:9),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),704x576 (4:3),704x480 (4:3),640x480 (4:3),640x360
- Video Compression
- H.264, H.265
- Data stream types
- Multi-Streaming
- Image transfer rate max.
- 30 fps
Lens
- Lens Type
- Prime lens
- Focal length
- 2,8 mm
- MOD (Minimum Object Distance)
- 0.5 m
- Horizontal angle of view
- 105,2°
Display
- Image resolution max.
- 2592x1944
DORI
- Perceiving (25px/m)
- 66,7 m
- Watch (62px/m)
- 26,1 m
- Detect (125px/m)
- 12,3 m
- Identify (250px/m)
- 5,7 m
Functions
- Multicast
- Yes
- Alarm processing
- alarm out,FTP,E-Mail
- Audio support
- Yes
- Audio
- 2 Way Audio
- Password
- Administrator and User
- Internal memory
- no
- Menu languages
- English, German
- Browser
- Edge: MJPEG, Google Chrome: Java, Mozilla: MJPEG, MS Internet Explorer 11, Safari: MJPEG
- Digital Noise Reduction (DNR)
- Yes
Interfaces / Inputs/ Outputs
- External connections
- 12VDC power input,Alarm in/output,Audio in/output,RJ-45
- Alarm inputs
- 1
- Control Interfaces
- Ethernet
General
- Wide Dynamic Range (WDR)
- WDR 120dB
- Lighting
- no
- Dimensions (WxHxD) (extended)
- siehe Maßzeichnung
- Housing type
- without housing
- Camera Type
- Board Camera
- Mounting type
- Built-in module
- ONVIF
- ONVIF Profile S
- Power over Ethernet
- IEEE 802.3af
- Power supply
- 12VDC, Poe
- Temperature Range (Operating)
- -20°C ~ +50°C
- Text overlay
- available
Parts supplied
- Scope of delivery
- manual,Connection cable set
Notes
- Remark
- NDAA compliance under Section 889,To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necess
Main Features
- 1/2.8" Sony STARVIS CMOS Sensor
- Excellent light sensitivity
- Resolution max. 2592x1944 (5MP)
- Lens fixed focal length 2.8mm
- WDR (120dB), BLC, 3DNR
- Tripple Streaming (H.265, H.264, MJPEG)
- Browser independent (IE, Edge, Safari, Firefox, Chrome)
- Object classification (person, car, bike)
- Supports ONVIF Profile S
- Operating temperature -20°C +50°C
- Dimensions 50x50x59mm
- Power supply PoE or 12VDC
