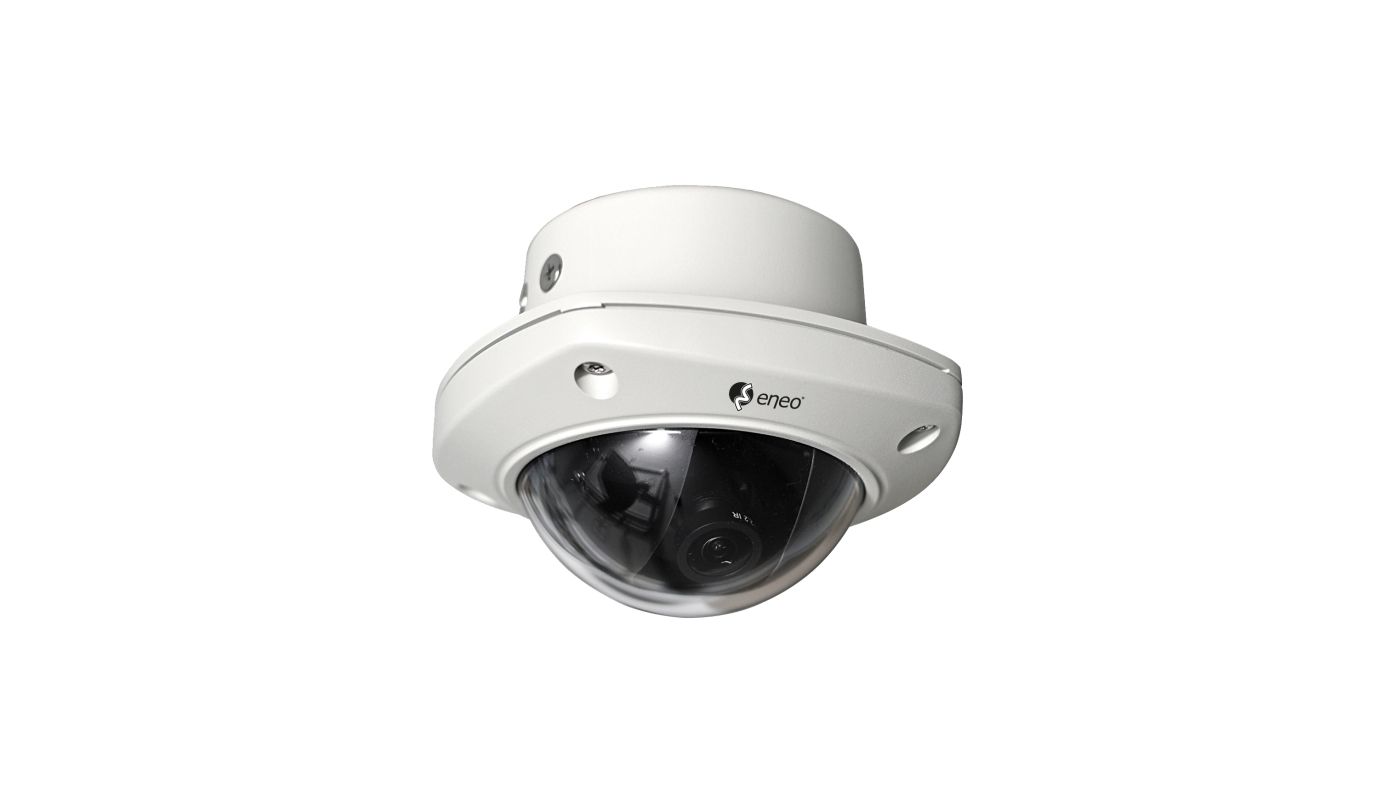

ISD-52F0023WFA

SKU 227008
1/2,8" Network Dome, WDR, 1920x1080, Day&Night, 2,3mm, H.265, PoE, 12VDC, Flush Mount
Data sheet

Camera not included

Specifications

Manufacturer order number
227008
Brand
eneo
Series
eneo SN-Serie

Camera

Camera shape
Minsters
Chip size
1/2,8"
Resolution standard
2 MP
Recording sensor
CMOS
Photosensitivity
0,08 Lux bei F2,2,40 IRE
System
True Day&Night
Flickerless function
Yes
Day/night switching
Switchable IR Filter (ICR)
Day/night mode
Automatic,Day,Night
White balance
Automatic,Manual
Signal-to-noise ratio
48 dB

Video

Resolution (extended)
1920x1080 (16:9),1440x1080 (4:3),1280x1024 (5:4),1024x768 (4:3),1280x720 (16:9),800x600 (4:3),800x480 (16:9),704x576 (4:3),704x480 (4:3),640x480 (4:3),400x240 (4:3),352x288 (4:3),
Video Compression
H.264, H.264+, H.265, H.265+, M-JPEG
Data stream types
Quad Streaming
Image transfer rate max.
30 fps

Lens

Lens Type
Prime lens
Focal length
2,3 mm
Zoom Factor (Digital)
0
MOD (Minimum Object Distance)
0.3 m
Horizontal angle of view
135°

Display

Image resolution max.
1920x1080

DORI

Perceiving (25px/m)
35 m
Watch (62px/m)
14 m
Detect (125px/m)
4 m
Identify (250px/m)
4 m

Functions

Multicast
Yes
Alarm processing
recording internal storage (SD card),E-Mail,FTP,Boost,HTTP,TCP,UDP,HTTPS,XML,alarm out
Audio support
Yes
Audio
2 Way Audio
Password
Administrator and User
Internal memory
microSDHC card, microSDXC card
Menu languages
Chinese, English, French, German, Japanese, Korean, Russian
Browser
Edge: MJPEG setup limited, Google Chrome: MJPEG setup limited, Mozilla: MJPEG setup limited, Safari: MJPEG setup limited
Digital Noise Reduction (DNR)
Yes

Interfaces / Inputs/ Outputs

External connections
Alarm output,Alarm input,Audio input/output,RJ-45,12VDC input (DC plug),connection cable approx.55cm
Alarm inputs
1

General

Wide Dynamic Range (WDR)
WDR 120dB
Lighting
no
Dimensions (WxHxD) (extended)
95x120mm
Color (dome)
clear
Housing type
Outside
Housing material
Aluminium
Mounting type
Ceiling-wall installation
ONVIF
ONVIF Profile S, ONVIF Profile T
Power over Ethernet
IEEE 802.3af
Protection
IP66
SDK
upon request
Power supply
12VDC, Poe
Temperature Range (Operating)
-20°C ~ +50°C
Text overlay
available
Vandalism-resistant
Yes
Certifications
IK10

Parts supplied

Scope of delivery
manual,bag of screws

Notes

Remark
To guarantee you an optimum user experience,we recommend that you only use components of the same brand in a system. If several brands are used in combination,eneo cannot guarantee functionality. If combined use is necessary,we offer a compatibility check

Main Features

  • 1 / 2.8 "2.0 MP Sony STARVIS CMOS sensor
  • Resolution max. 1920x1080 (Full HD)
  • Fixed focal length 2.3mm, day / night lens (HFoV 135 °!)
  • Quad Streaming (H.265, H.264, MJPEG)
  • Intelligent self-learning video analysis (IntelliVision inside)
  • WDR 120dB, Smart BLC
  • Slot for micro SD memory card
  • ONVIF compliance, PoE IEEE802.af, 12VDC
  • Audio, alarm inputs and outputs
  • Privacy zones, password protection, browser-independent
  • Increasing the refresh rate when moving
  • Suitable for indoor and outdoor use IP66, flush mount
