IPD-72A0003M0A
SKU 213013This article is no longer available Successor: IPD-72A0003M0B
1/3" Network Dome, Fixed, 1920x1080, Day&Night, AF Zoom, WDR, 3-9mm, Infrared, IP67
discontinued

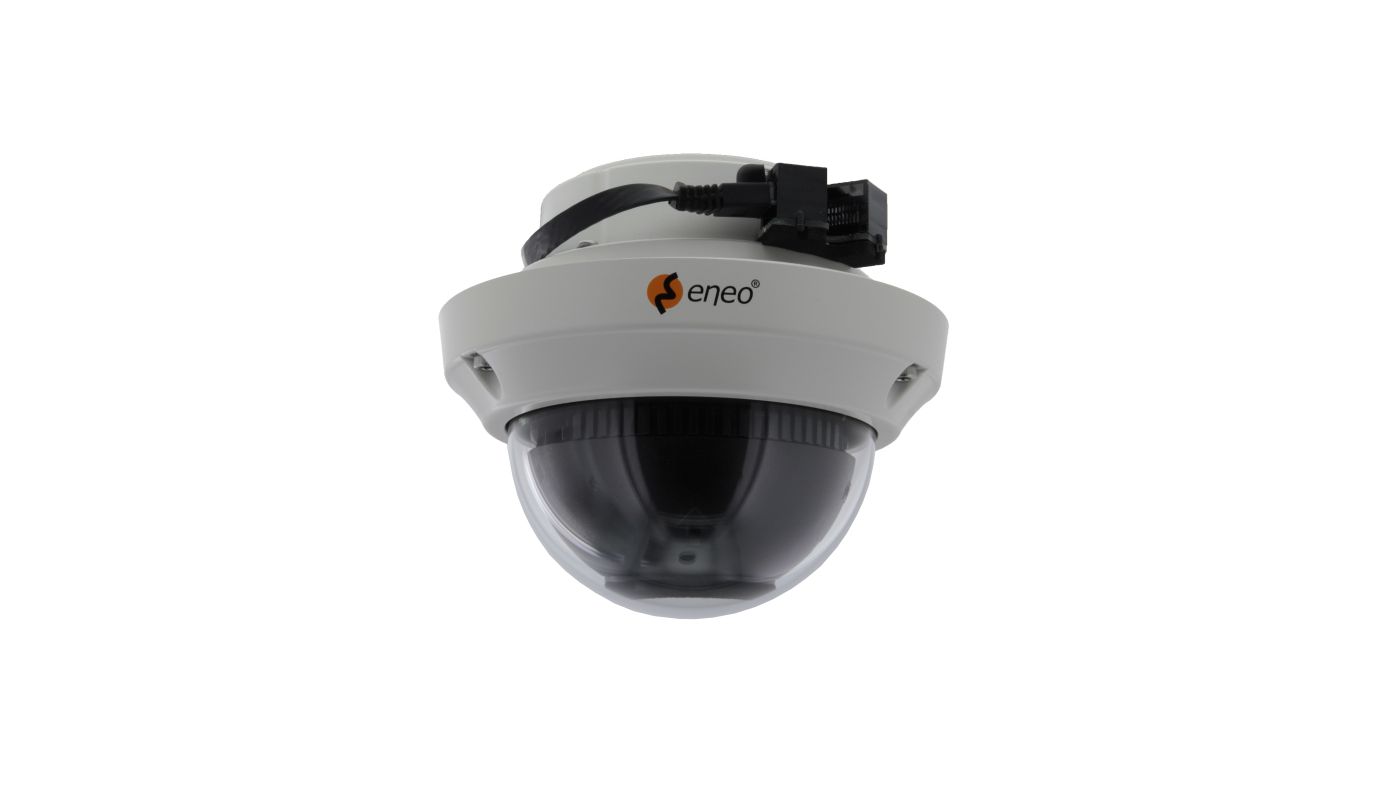

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 213013 |
|---|---|
| Series | eneo KN-Series |
| Alarm inputs | 1 |
|---|---|
| Alarm outputs | 1 |
| Analysis functions | Cross Counting (CC), Defog, Motion detection, Perimeter Intrusion Detection (PID), Tampering Detection (TD) |
| Audio | 2 Way Audio |
| Audio support | yes |
| Backlight Compensation | BLC, HLC |
| Blower | yes |
| Brand | eneo |
| Camera type | Dome |
| Certifications | IK10 |
| Color (bubble) | clear |
| Color (housing) | Pantone Cool Gray 1C |
| Day&Night switch | ICR |
| Digital Noise Reduction | yes |
| Digital Zoom | 16x |
| Dimensions (HxWxD) | 119x140mm |
| Ethernet interface | 100Base-TX, 10Base-T |
| Focal Length | 3 - 9 mm |
| Heater | yes |
| Horizontal Angle of View | 90 - 32° |
| Hosuing material | Aluminium |
| Housing | Outdoor |
| Illumination range | approx. 40m |
| Image Transmission Rate | 30 fps |
| Image resolution max. | 1920x1080 |
| Imager | CMOS |
| Internal storage | microSDHC card, microSDXC card |
| Iris Control | DC |
| Lens Type | auto focus zoom |
| Low Speed Shutter | yes |
| MOD (Mininum Object Distance) | 0,5 m |
| Motion Detector | yes |
| Mounting | Ceiling mount, Wall mount |
| ONVIF | ONVIF Profile S |
| Operating temperature | -50°C ~ +50°C |
| Power consumption | 9W |
| Power over Ethernet | IEEE 802.3af |
| Protection rating | IP67 |
| Remote configuration | Browser |
| Resolution Standard | HD 1080p, HD 720p |
| Sensitivity | 0,35 Lux at F1,2, 40 IRE |
| Sensor size | 1/3" |
| Serial interfaces | Ethernet |
| Supply voltage | 12VDC, 24VAC, PoE |
| System | True Day&Night |
| Vandal proof | yes |
| Vertical Angle of View | 50 - 18° |
| Video compression | H.264, M-JPEG |
| Video outputs | no |
| Weight | 1 kg |
| Wide Dynamic Range (WDR) | WDR 113dB |
| Zoom Factor | 3x |
| llumination | Infrared |
Main Features
- 1/3" Panasonic CMOS Sensor
- Resolution max. 1920x1080 (Full HD)
- Optical 3x Auto Focus Zoom, 16x Digital
- 3~9 mm day&night zoom lens, IR cut filter
- Cross Web Browsing (IE, Safari, Firefox, Chrome)
- Responsive Web Design, Zero configuration
- Triple Streaming: 2x H.264, 1x MJPEG
- VerticalView 90°/270° mode only H.264, HTML5 Playback
- Real time WDR (Wide Dynamic Range) 25/30fps
- Slot for Micro SD card
- ONVIF conformity, PoE IEEE802.af
- Hard Coated Bubble, scratch resistant
Downloads
-
Data sheet with specifications generated live from the product database
-
Quick reference guide for this product
-
Kurz-Betriebsanleitung zum Produkt
-
Mode d'emploi succincte pour ce produit
-
Istruzioni d'uso brevi sul prodotto
-
Detailed manual for this product
