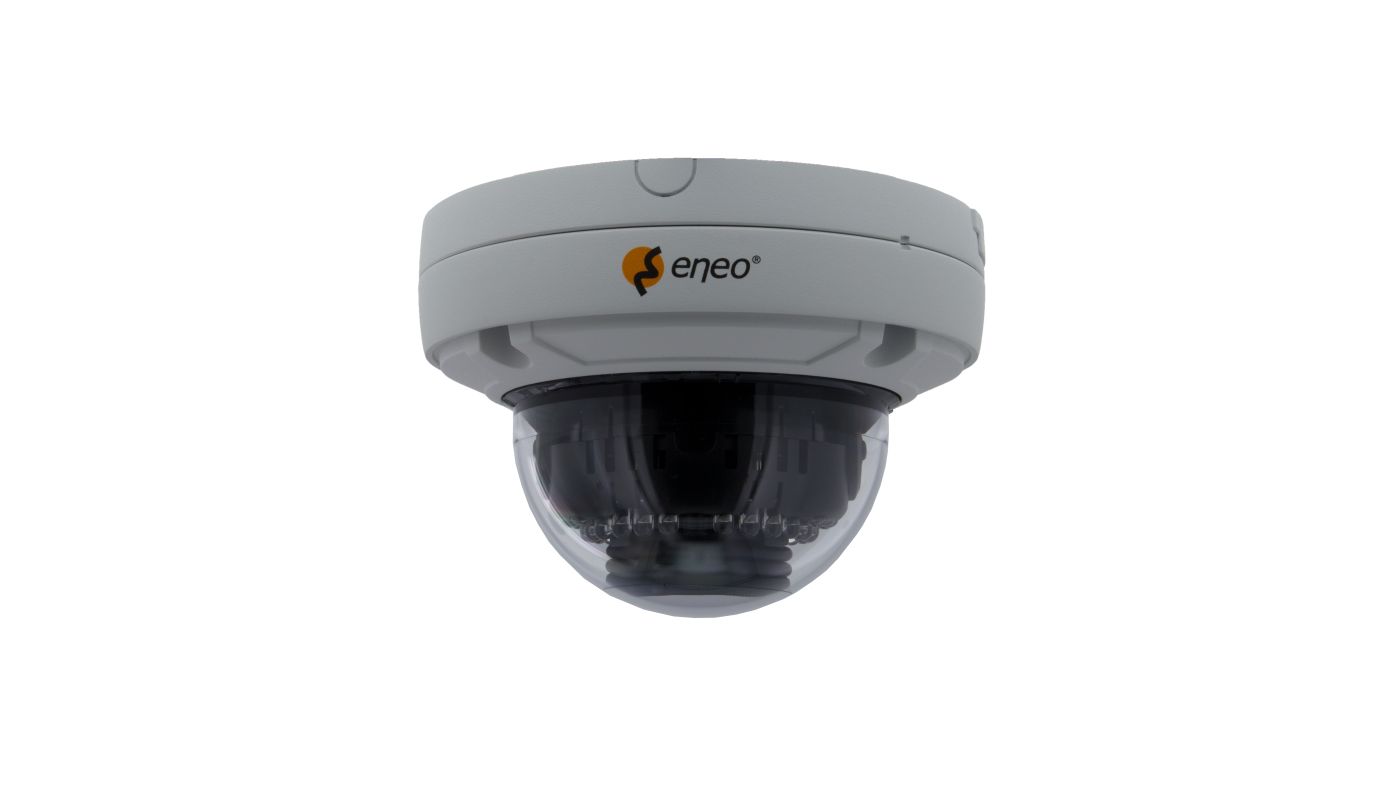

IED-62M2812MCA
1/2,8" Network Dome, Fix, 1920x1080,Day&Night, WDR, 2,8-12mm, EPOC, IR, IP66
SKU
220931
Main Features
- 1/2,8" Sony STARVIS CMOS
- Resolution max. 1920x1080, 25fps frame rate
- Motorised vary focal lens 2,8~12mm with P-Iris
- EPOC Ethernet and Power over Coax transmission
- Wide Dynamic Range, T-WDR (120dB)
- Intelligent self learning video analysis (IntelliVision Technology Inside)
- Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec
- Micro SD Card (SDHC, SDXC)
- 1 x Alarm in and output as well as audio support
- Infrared illumination up to 30m
- Easy installation, IP66, PoE IEEE 802.3af
- Support ONVIF Profile S and Profile T
For Prices and Availability please login.
| Brand | eneo |
|---|---|
| Series | eneo EPOC, eneo SN-Series |
| System | True Day&Night |
| Sensor size | 1/2.8" |
| Imager | CMOS |
| Video compression | H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG |
| Image resolution max. | 1920x1080 |
| Image Transmission Rate | 30 fps |
| Day&Night Switch | ICR |
| Sensitivity | 0,03 Lux |
| Sensitivity 2 | 40IRE, at F1.6 |
| Low Speed Shutter | yes |
| Digital Noise Reduction | yes |
| Backlight Compensation | Smart BLC |
| Wide Dynamic Range (WDR) | WDR 120dB |
| Motion Detector | yes |
| Lens Type 2 | Varifocal (motorized) |
| Focal Length | 2,8 - 12 mm |
| Iris Control | P-iris |
| Zoom Factor | 4x |
| Digital Zoom | yes |
| Horizontal Angle of View | 100 - 33° |
| Vertical Angle of View | 56 - 18° |
| llumination | infrared |
| Housing | outdoor |
| Color (housing) | white |
| Color (bubble) | clear |
| Hosuing material | aluminium |
| Heater | no |
| Blower | no |
| Rotation range | 359° |
| Alarm inputs | 1 |
| Alarm outputs | 1 |
| Audio support | yes |
| Serial interfaces | Ethernet |
| Internal storage | microSDHC card, microSDXC card |
| Analysis functions | Defog, intrusion, loitering detection, motion analysis, motion detection, Person recognition, tampering protection, Trip wire plus object counting |
| Mounting_4 | ceiling mount, wall mount |
| Supply voltage | 12VDC, Power over Coax (PoC) |
| Power consumption | 8,5W |
| Vandal proof | yes |
| Operating temperature | -20°C ~ +50°C |
| Protection rating | IP66 |
| ONVIF | ONVIF Profile S, ONVIF Profile T |
| Certifications | IK10 |
| Camera bulit | Dome |
| Audio | 2 Way Audio |
| Remote configuration | web browser |
| Dimensions (HxWxD) | 99x144mm |
| Illumination range | approx. 30m |
| Weight | 776g |
| Manufacturer order number | 220931 |
