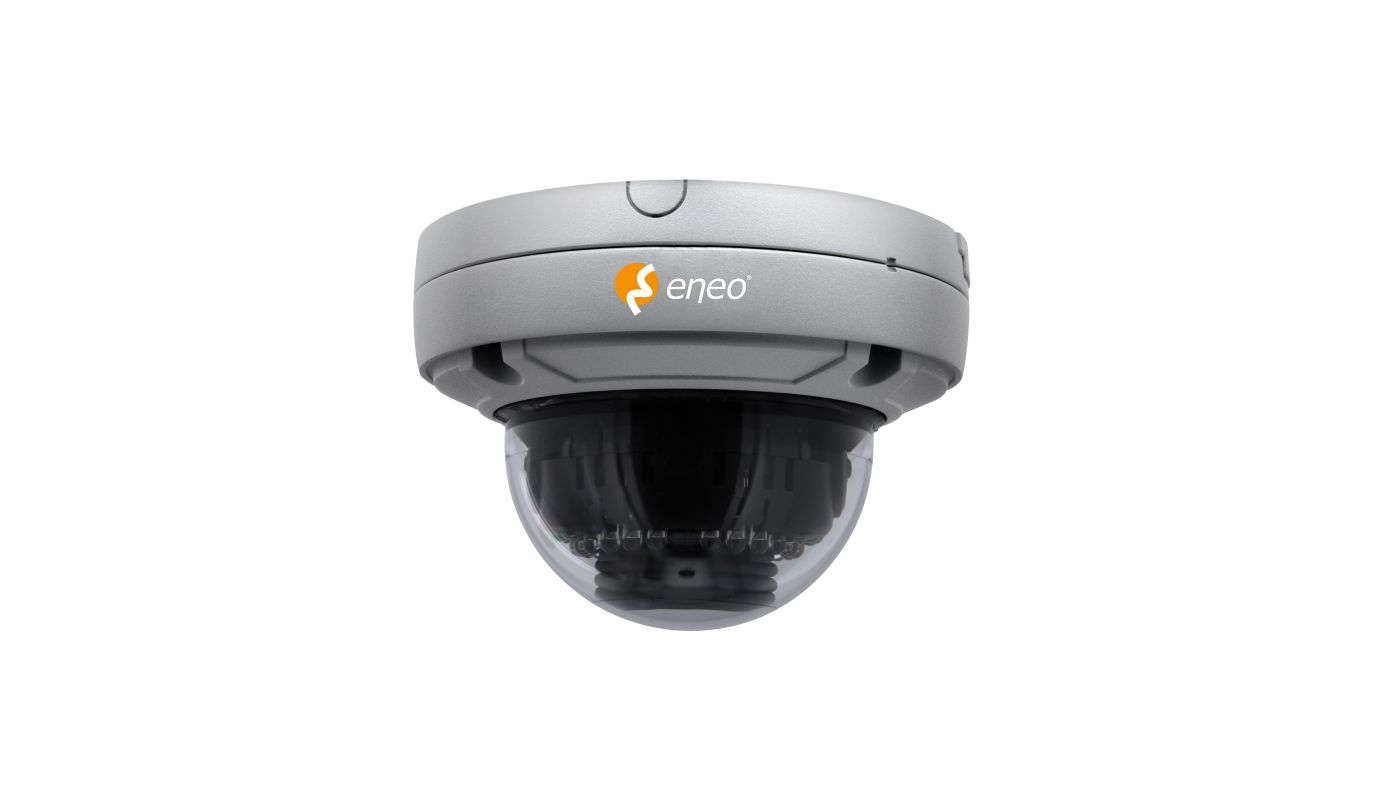

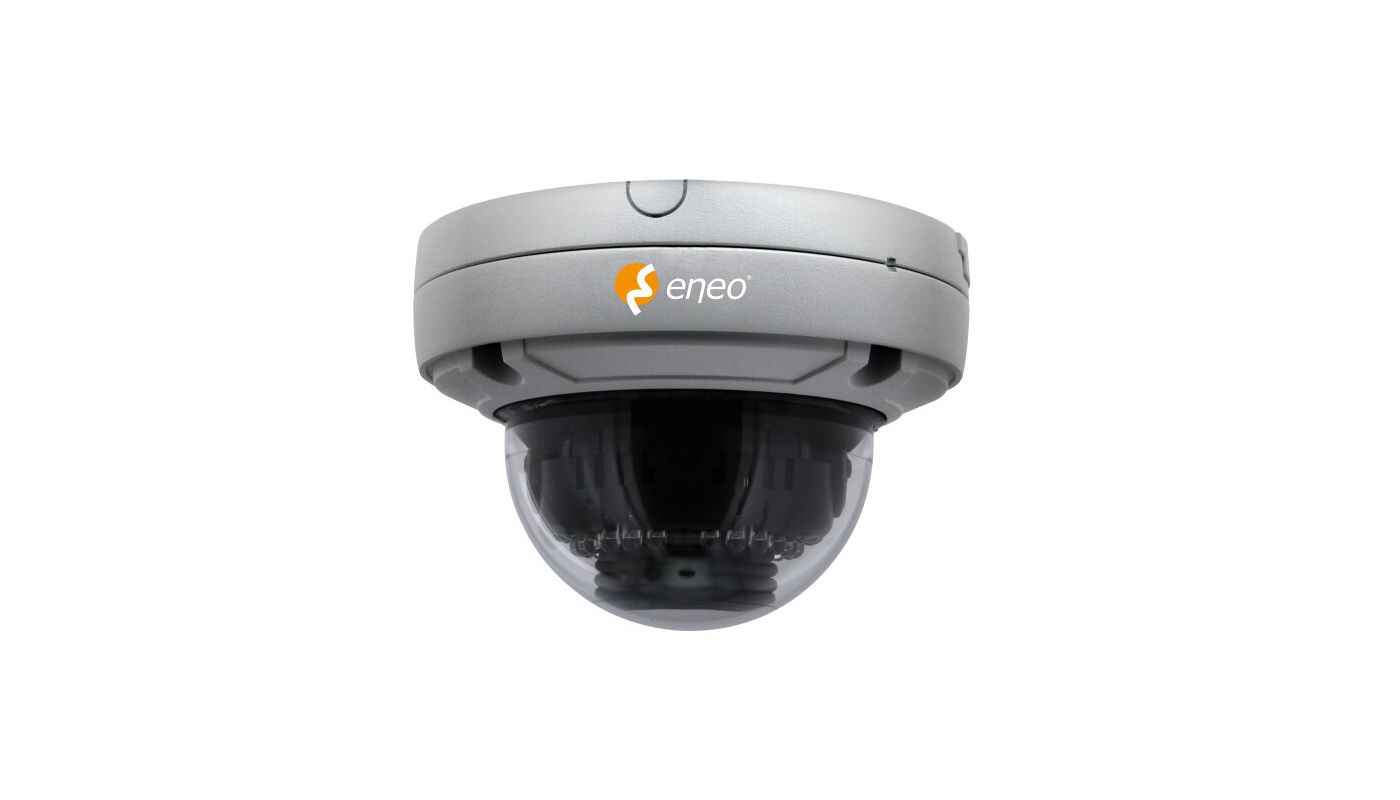

IED-62M2812MAA 9006

1/2.8" Network Dome, Fixed, 1920x1080, Day&Night, WDR, 2,8-12mm, IR, Silver Metallic
Main Features
  • 1/2,8" Sony STARVIS CMOS
  • Resolution max. 1920x1080, 25fps frame rate
  • Motorised vary focal lens 2.7~12mm with P-Iris
  • Intelligent self-learning video analysis (IntelliVision inside)
  • Wide Dynamic Range, T-WDR (120dB)
  • Quad Streaming: H.264, H.265 x3, MJPEG x1, Smart Codec ROI Hi-Stream
  • Micro SD Card (SDHC, SDXC)
  • 1 x Alarm in and output as well as audio support
  • Infrared illumination up to 30m
  • PoE IEEE 802.3af Class 0,12VDC, IP66
  • Supports ONVIF Profile S and Profile T
  • Colour RAL 9006 white aluminum
More Information
Brand eneo
Camera type Dome
Sensor size 1/2.8"
Resolution Standard HD 1080p
Sensitivity 0,03 Lux at F1,6, 40 IRE
System True Day&Night
Imager CMOS
Day&Night switch ICR
Low Speed Shutter yes
Digital Noise Reduction yes
Backlight Compensation BLC
Image resolution max. 1920x1080
Wide Dynamic Range (WDR) WDR 120dB
Motion Detector yes
Lens Type Varifocal (motorized)
Image Transmission Rate 30 fps
Iris Control DC, P-iris
Video compression H.264, H.264+ (Smart Stream), H.265, H.265+ (Smart Stream), M-JPEG
Lens Type Varifocal (motorized)
llumination Infrared
Zoom Factor 4x
Focal Length 2,8 - 12 mm
Digital Zoom yes
MOD (Mininum Object Distance) 0,5 m
Vertical Angle of View 56 - 18°
Horizontal Angle of View 100 - 33°
Detect (25px/m) 40 - 130 m
Observe (62 px/m) 16 - 55 m
Recognize (125 px/m) 8 - 26 m
Identify (250 px/m) 4 - 13 m
Analysis functions Cross Counting (CC), Human (PD), Loitering detection, Motion detection, Perimeter Intrusion Detection (PID), Tampering Detection (TD)
Rotation range 359°
Audio support yes
Audio 2 Way Audio
Internal storage microSDHC card, microSDXC card
Remote configuration Browser
Ethernet interface 100Base-TX, 10Base-T
Supply voltage 12VDC, PoE
Alarm inputs 1
Alarm outputs 1
Serial interfaces Ethernet
Series eneo SN-Series
Dimensions (HxWxD) 99x144mm
Weight 776g
Illumination range approx. 30m
Color (housing) RAL9006
Color (bubble) clear
Housing Outdoor
Hosuing material Aluminium
Heater no
Power consumption 8,5W
Blower no
Mounting Ceiling mount, Wall mount
ONVIF ONVIF Profile S, ONVIF Profile T
Power over Ethernet IEEE 802.3af
Protection rating IP66
Operating temperature -20°C ~ +50°C
Vandal proof yes
Certifications IK10
Manufacturer order number 225147
