IAR-7SE1024MMB
SKU 228222No longer available
Gigabit Switch, 24xPoE 100Mbps 2x RJ45 Gbit, 2xSFP Gbit, 390W, Managed, 19", 1HE
discontinued

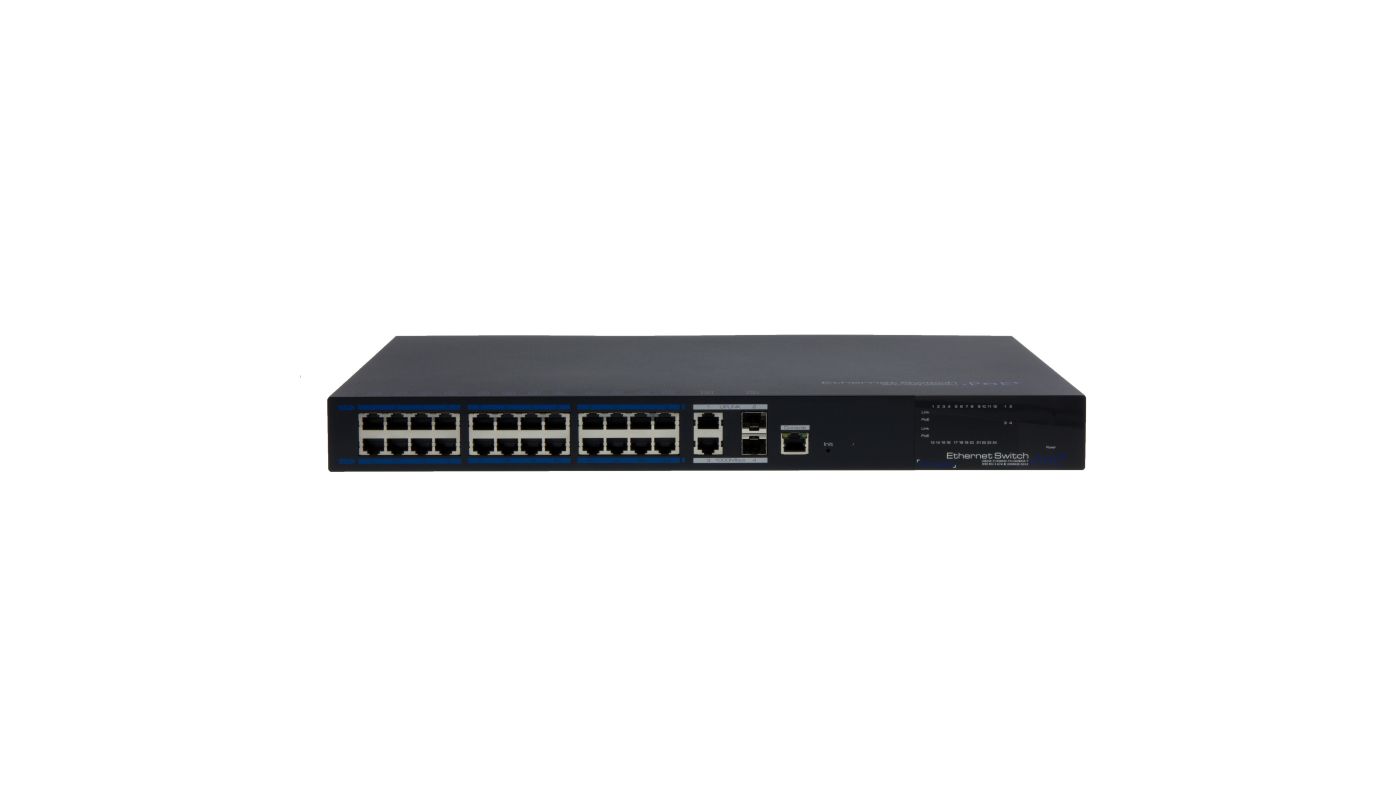

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 228222 |
|---|---|
| Series | eneo Switch |
| Application environment | inside |
|---|---|
| Brand | eneo |
| Design | Rack |
| Dimensions (WxHxD) (extended) | 44,5x442x263mm |
| ESD protection | IEC61000-4-2, IEC61000-4-5 |
| Eneo _netzwerkstandards | IEEE 802.1D Spanning Tree Protocol, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control |
| Ethernet interface | 1000Base-T, 100Base-TX, 10Base-T |
| Fan | Yes |
| Internal Switching Capacity (Gbit) | 12.8 Gbps |
| Internal Switching Capacity (MP per second) | 9.5 Mpps |
| Management | Yes |
| Mounting type | 19" Rack Installation |
| Multicast | Yes |
| Number of PoE ports | 24 |
| PoE Budget (Total) | 390 W |
| Ports | 24x 10/100Base-TX, 2x 10/100/1000Base-TX, 2x 10/100/1000T SFP, Console RJ45-RS232, Console RJ45-RS232 |
| Power consumption | 450 W |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Power supply | 100~240VAC |
| Scope of delivery | manual,power cord,19\" rack mount angle |
| Security | Fast Ring, Password, Port Isolation, Port Speed Setting, Radius Authentication |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Type | Layer2 Switch |
| VLAN | Yes |
| Weight | 3.8 kg |
Main Features
- PoE Switch, Rack Montage
- Gigabit Uplink Ports: 2xRJ45, 2xSFP
- 24x 10/100 PoE Ports, IEEE 802.3af/at
- Up to 30W per port, Total ≤390W
- ESD protection IEC61000-4-5 standard
- Managed L2 switch, Built in low-noise fans
- Web configuration, Web management
- VLAN, PoE management, MAC address table
- Port mirroring, password
- Status LEDs
- Temperature range -10 ° C ~ + 50 ° C
- Rack mounting brackets included
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Manual for this product (english)
-
Product image in a high resolution
-
Declaration of conformity (german and english)
