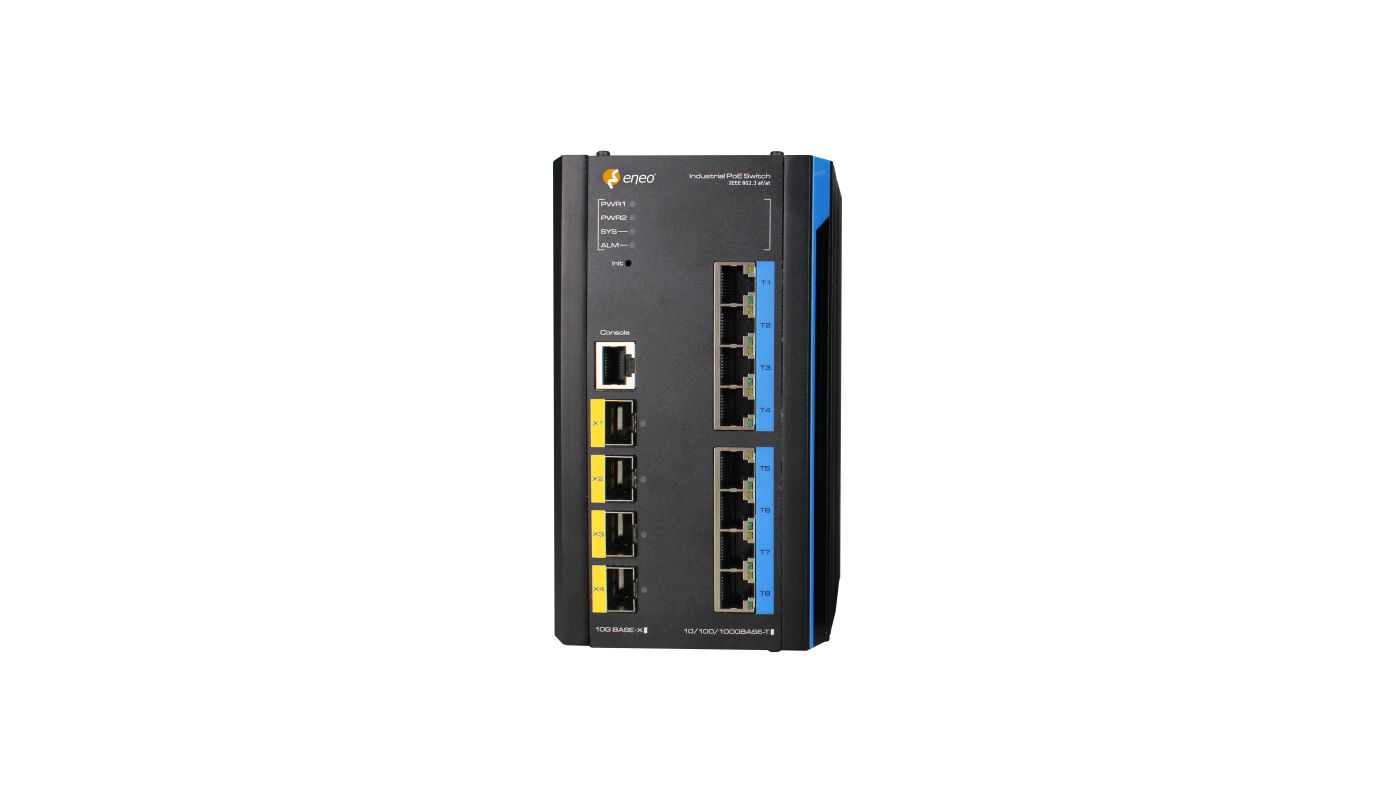

IAM-6SE1008IMA
SKU 230035No longer available
Gigabit Switch, Managed, 240W, Layer 3, 8xPoE, 4x SFP 10G, Industrial Design
discontinued
Specifications
- Manufacturer order number
- 230035
- Brand
- eneo
- Series
- eneo Switch
Functions
- Multicast
- Yes
- Security
- Fast Ring, Password, Port Isolation, Port Speed Setting, Radius Authentication
Network
- Eneo _netzwerkstandards
- IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.3 10BaseT, IEEE 802.3ad Link Aggregation, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control
- Internal Switching Capacity (Gbit)
- 96 Gbps
- VLAN
- Yes
Interfaces / Inputs/ Outputs
- Ethernet interface
- 1000Base-T, 100Base-TX, 10Base-T
- Ports
- 4x 10GBit SFP, 8x 10/100/1000Base-T, Console RJ45-RS232, Console RJ45-RS232
General
- Design
- DIN Rail Module
- Dimensions (WxHxD) (extended)
- 95,6x163x110mm
- Weight
- 1.9 kg
- Number of PoE ports
- 8
- Type
- Layer3 Switch
- Power consumption
- 260 W
- Management
- Yes
- Mounting type
- DIN Rail, Wall
- PoE Budget (Total)
- 240 W
- Power over Ethernet
- IEEE 802.3af, IEEE 802.3at
- Power supply
- 48-57 VDC
- Temperature Range (Operating)
- -40°C ~ +75°C
- ESD protection
- IEC61000-4-2, IEC61000-4-5
Parts supplied
- Scope of delivery
- manual,Mounting Bracket
Notes
- Remark
- Power supply unit is not included in the scope of delivery,To achieve the specified PoE budget (total) value,an appropriate optional power supply unit must be used.
Main Features
- 8-Port Gigabit Switch Managed L3, Fanless
- 4x SFP 10 Gigabit Uplink Ports
- PoE Standard IEEE 802.3af/at
- Up to 30W per port, total ≤240W (Power supply not included)
- Fast Ring-Redundant, Reconfiguration <20ms
- ESD protection IEC61000-4-5 standard
- Web configuration, Web management
- VLAN, PoE management, MAC address table
- Port mirroring, password protection
- Relay Alarm for power failure, cable link down and PoE link down
- Temperature range -40° C ~ +75° C
- DIN-rail, Rack mounting brackets included
