IAM-5SG1004MMA
SKU 219526
Gigabit Switch, Managed, 120W, 4x PoE, 2x SFP, 1000Mbps, Industrial Design, -40°C~+75°C
For Prices and Availability please login.
phased-out

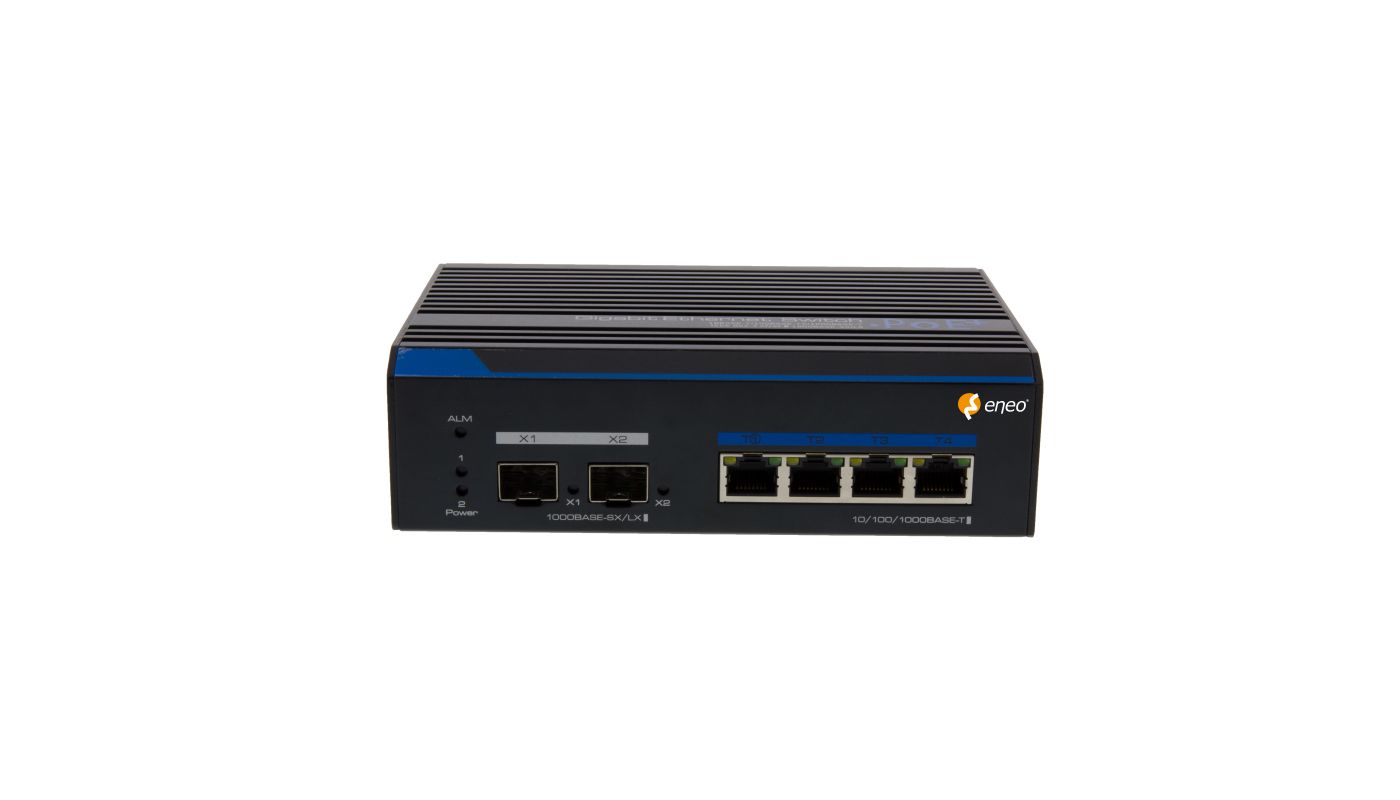

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 219526 |
|---|---|
| Series | eneo Switch |
| Brand | eneo |
|---|---|
| Design | DIN Rail Module |
| Dimensions (WxHxD) (extended) | 46,5x110x163mm |
| ESD protection | IEC61000-4-2, IEC61000-4-5 |
| Eneo _netzwerkstandards | IEEE 802.1D Spanning Tree Protocol, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3x Flow Control |
| Ethernet interface | 1000Base-T, 100Base-TX, 10Base-T |
| Fan | No |
| Internal Switching Capacity (Gbit) | 24 Gbps |
| Internal Switching Capacity (MP per second) | 8.9 Mpps |
| Management | Yes |
| Mounting type | DIN Rail, Wall |
| Multicast | Yes |
| Number of PoE ports | 4 |
| PoE Budget (Total) | 120 W |
| Ports | 2x 1000Base-X SFP, 4x 10/100/1000Base-T |
| Power over Ethernet | IEEE 802.3af, IEEE 802.3at |
| Power supply | 48-57 VDC |
| Rack installation | No |
| Remark | External power supply specification: 100~240VAC,150W,30x70x150mm,-30°~+70°,CCTV mode: transmission of 10Mbps @ 250m,CCTV mode,PoE Power output: 29.2W @ 1m; 25.8W @ 100m; 24.2W @ 150m; 19.9W @ 250m |
| Scope of delivery | manual,power cord,Mounting Bracket,PSU |
| Security | Fast Ring, Password, Port Isolation, Port Speed Setting, Port Speed Setting, Radius Authentication, Radius Authentication, Radius Authentication |
| Temperature Range (Operating) | -40°C ~ +75°C |
| Type | Layer2 Switch |
| VLAN | Yes |
| Weight | 680 kg |
Main Features
- Gigabit PoE Switch, DIN Rail
- 2x SFP Gigabit Uplink Ports
- 4x 10/100/1000 PoE Ports, IEEE 802.3af/at
- Supports VLAN, RTSP, "Fast Ring", and QoS
- Up to 30W per port, Total ≤120W
- Fast Ring-Redundant, Reconfiguration <20ms
- Supports redundant power supply connection
- ESD protection IEC61000-4-5 Standard
- Web configuration, Web management
- Fault Relay, Console Port, Status LED
- PoE reset button for each port
- CCTV mode allows transmission up to 250m @ 10Mbps
