HDD-980MIR B

SKU 211467

This article is no longer available

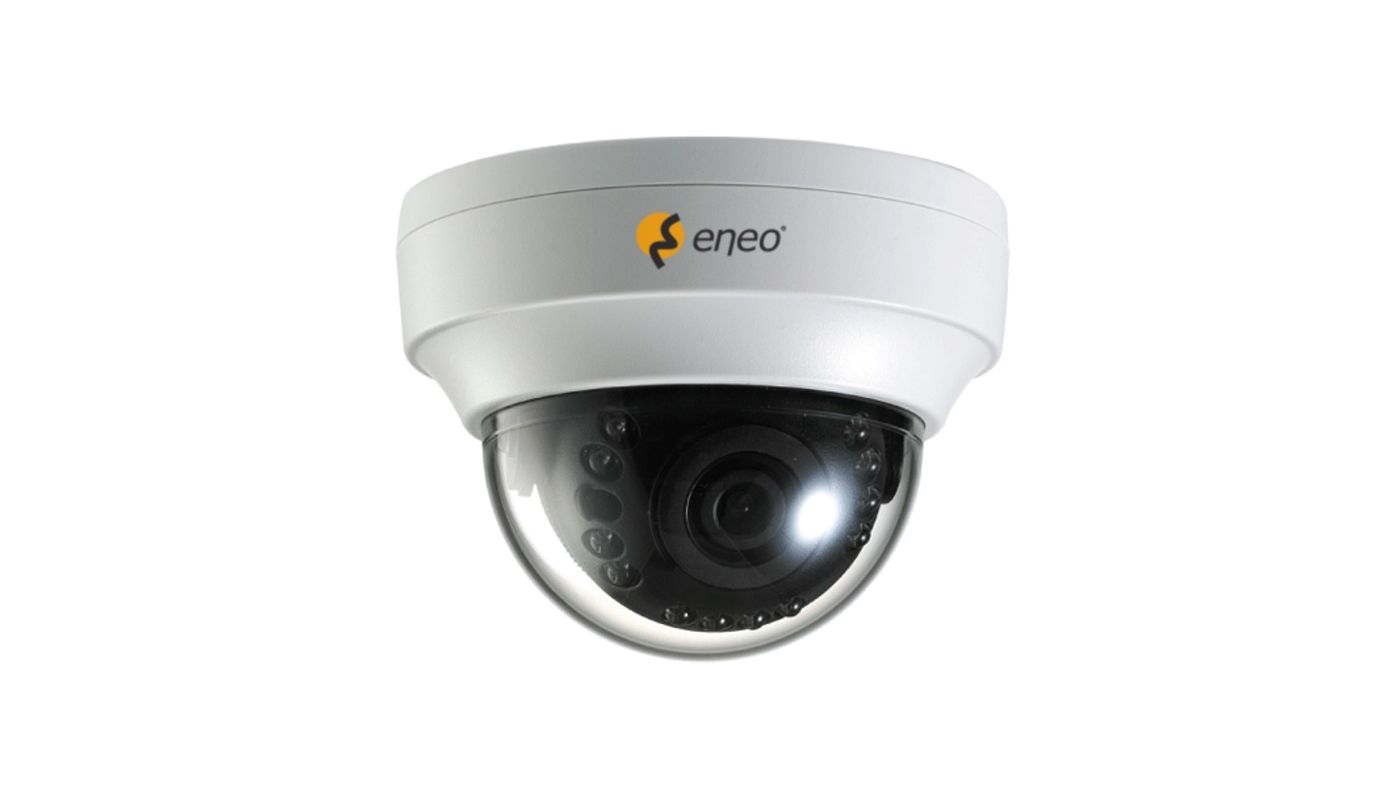

1/3" HD-SDI Dome, WDR, Day&Night, 1920x1080, 3.6mm, Infrared, 12V
Data sheet

Specifications

Manufacturer order number 211467
Series eneo COAXIZE
Alarm inputs nein
Alarm outputs no
Aperture range (F) F2.0
Backlight Compensation BLC, HLC
Brand eneo
Color (bubble) clear
Color (housing) white
Day&Night switch ICR
Digital Noise Reduction yes
Dimensions (HxWxD) see drawing
Focal Length 3,6 mm
Frame rate 25/30fps @ 1920x1080p, 50/60fps @ 1280x720p
Heater no
Horizontal Angle of View 86°
Hosuing material Plastic
Housing Indoor
Imager CMOS
Lens Type fixed focal length
Low Speed Shutter yes
Motion Detector yes
Mounting Ceiling mount, Wall mount
Operating temperature -10°C ~ +50°C
Power consumption 5W
Protection rating n/a
Resolution Pixels 1280x720, 1920x1080
Sensitivity 0,5 Lux (Color) 0,1Lux (BW)
Sensor size 1/3"
Serial interfaces no
Signal format EX-SDI (270 Mbps), HD-SDI (1.485 Gbps)
Supply voltage 12VDC
System True Day&Night
Vandal proof no
Video outputs EX-SDI
Weight 190g
Wide Dynamic Range (WDR) WDR
llumination Infrared

Main Features

  • 1/3" 2.0 MP progressive scan CMOS sensor
  • Resolution max. 1920x1080 (Full HD)
  • Support HD-SDI and EX-SDI format
  • 3.6mm Mega Pixel lens
  • Removable infrared cut filter
  • IR illumination
  • WDR, 2&3DNR Noise Reduction, Defog function
  • Integral motion detection
  • 1.5G HD-SDI video transmission via coax
  • Wall or ceiling mount
