phased-out

EDC-OPC-2/24V

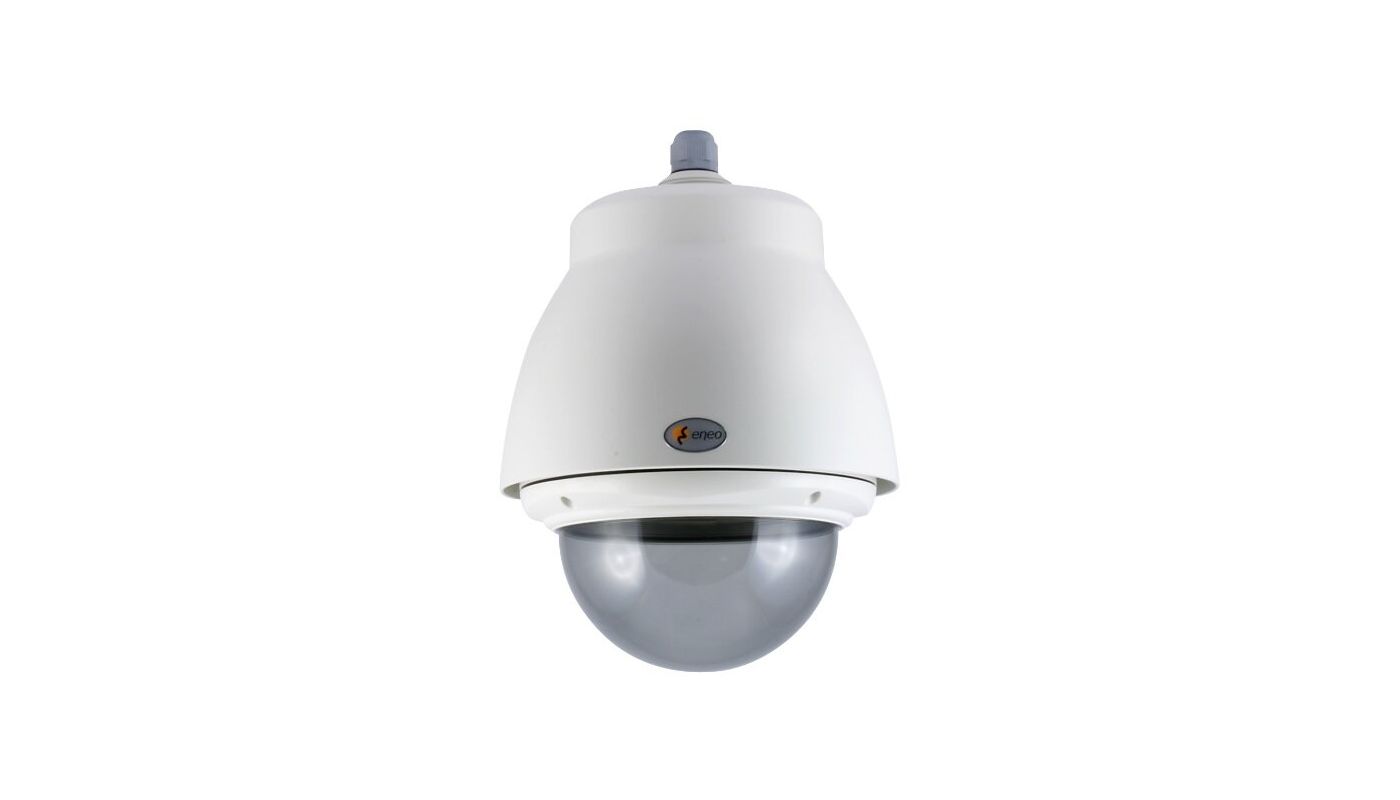

Pendant Mount Outdoor Dome Housing, Sun Shield, Clear Bubble 6.5", 24VAC
SKU
74130
Main Features
  • Outdoor housing for Fastrax I - III dome cameras
  • Clear bubble 6.5" (165mm)
  • Prepared for wall and ceiling mounting
  • Sunshield, heater and blower kit included
  • Supply voltage: 24VAC/50-60Hz
  • Protection rating: IP66
  • Option: Wall and ceiling mount brackets, power box
  • Option: Connection cable #74143 & #74144
More Information
Brand eneo
Weight 3,6kg
Color (housing) Pantone Cool Gray 1C
Color (bubble) clear
Housing Outdoor
Hosuing material Aluminium
Heater yes
Power consumption approx. 75W for heater, blower and incl. dome camera
Mounting Wall or ceiling pendant mount
Protection rating IP66
Operating temperature -45°C ~ +50°C
Manufacturer order number 74130

to top
to top
  • Manufacturer data sheet PDF 74130_en_sup.pdf Original product information from the manufacturer 157.7 kB
  • Manufacturer datasheet PDF Original product information from the manufacturer
  • Data sheet PDF 74130_edc-opc-2-24v.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 74130_edc-opc-2-24v.doc Technical data as Word document, generated live from the product database <50KB
