phased-out

EDC-IPC-2/24V

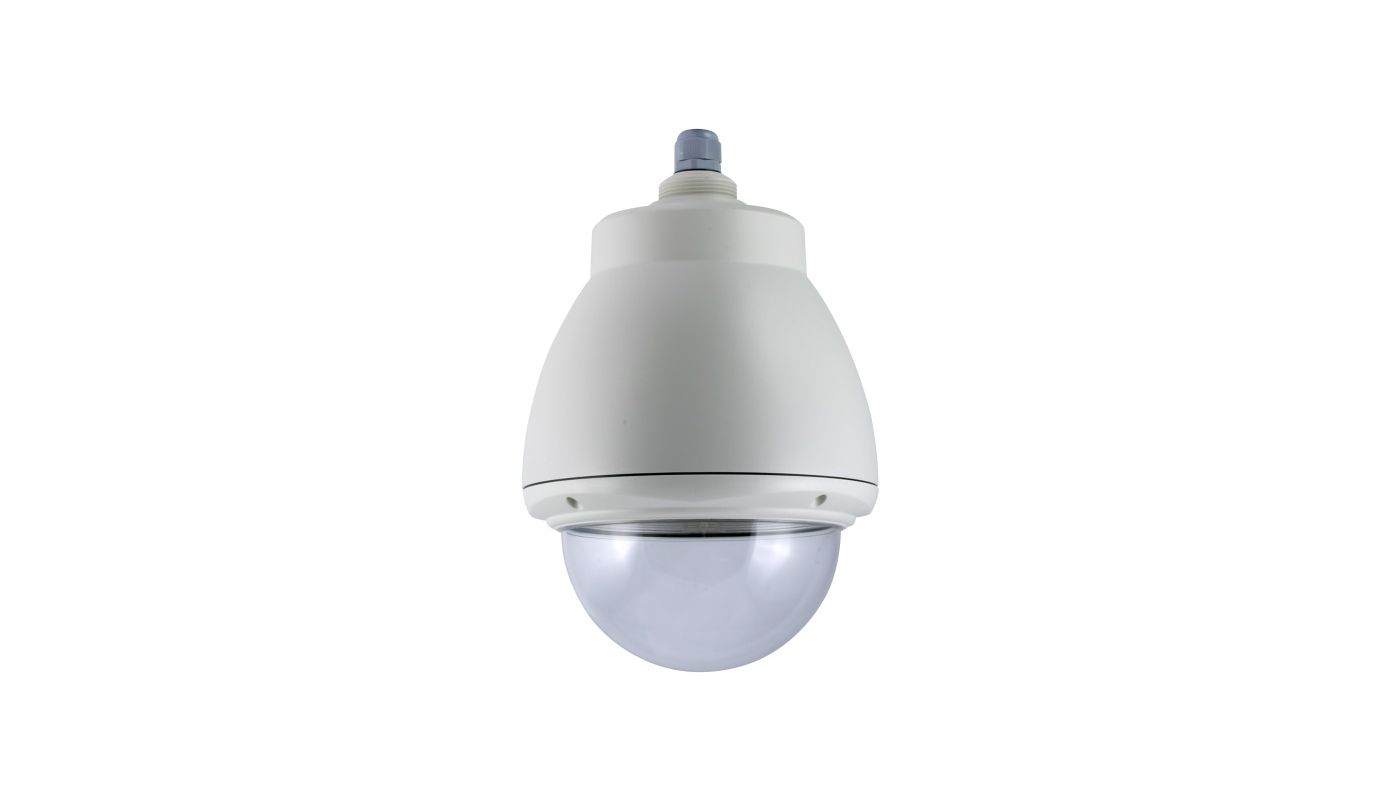

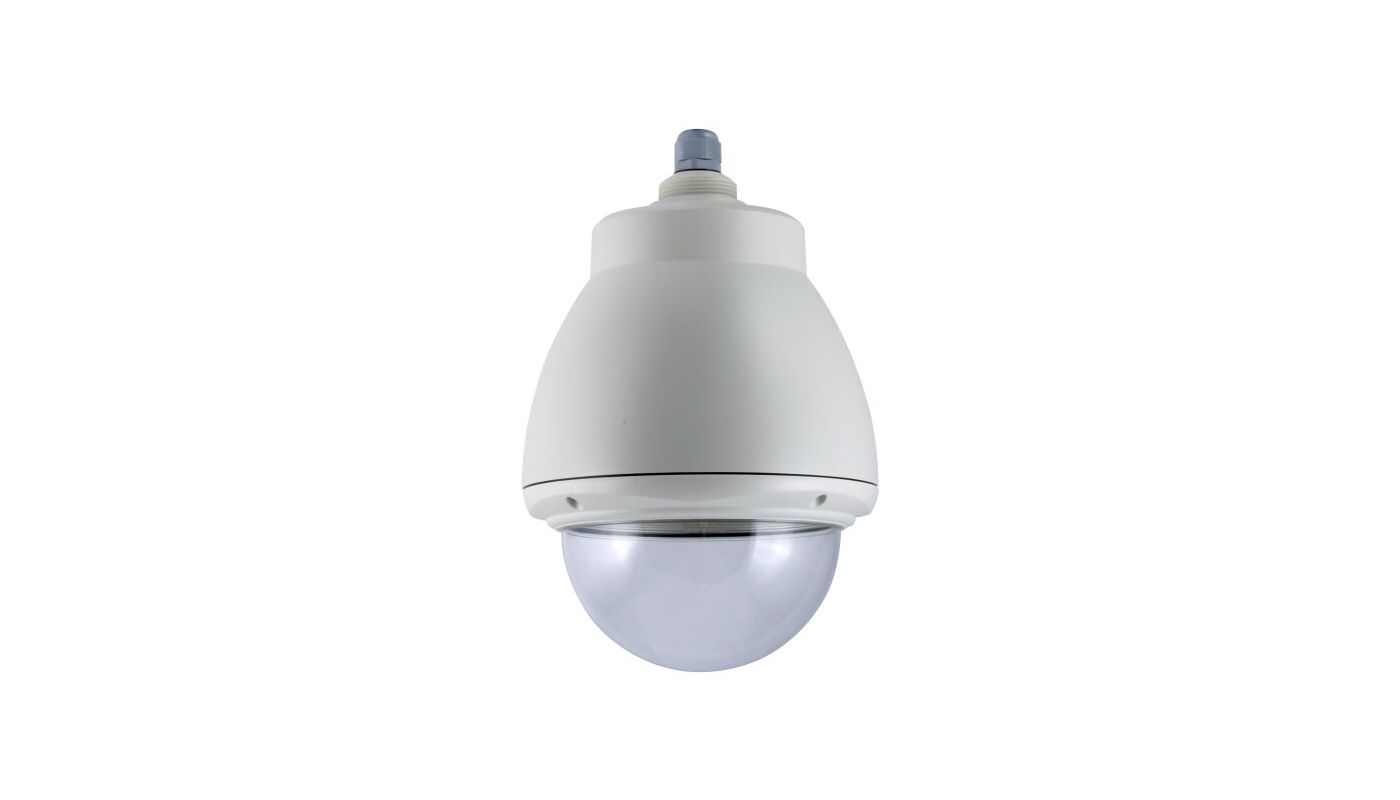

Pendant Mount Indoor Dome Housing with Clear Bubble 6.5", 24VAC
SKU
74135
Main Features
  • Indoor housing for Fastrax I - III dome cameras
  • Clear bubble 6.5" (165mm)
  • Prepared for wall and ceiling mounting
  • Heater & blower kit included
  • Supply voltage: 24VAC/50-60Hz
  • Protection rating: IP66
  • Option: Wall and ceiling mount brackets, power box
  • Option: Connection cable #74143 & #74144
More Information
Brand eneo
Housing indoor
Color (housing) Pantone Cool Gray 1C
Color (bubble) clear
Hosuing material aluminium
Heater yes
Mounting_4 wall or ceiling pendant mount
Power consumption approx. 75W for heater, blower and incl. dome camera
Operating temperature -45°C ~ +50°C
Protection rating IP66
Weight 2.8kg
Manufacturer order number 74135

to top
to top
  • Manufacturer data sheet PDF 74135_en_sup.pdf Original product information from the manufacturer 157.1 kB
  • Data sheet PDF 74135_edc-ipc-2-24v.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 74135_edc-ipc-2-24v.doc Technical data as Word document, generated live from the product database <50KB
