AES-5SF0036M1A
SKU 223916
discontinued

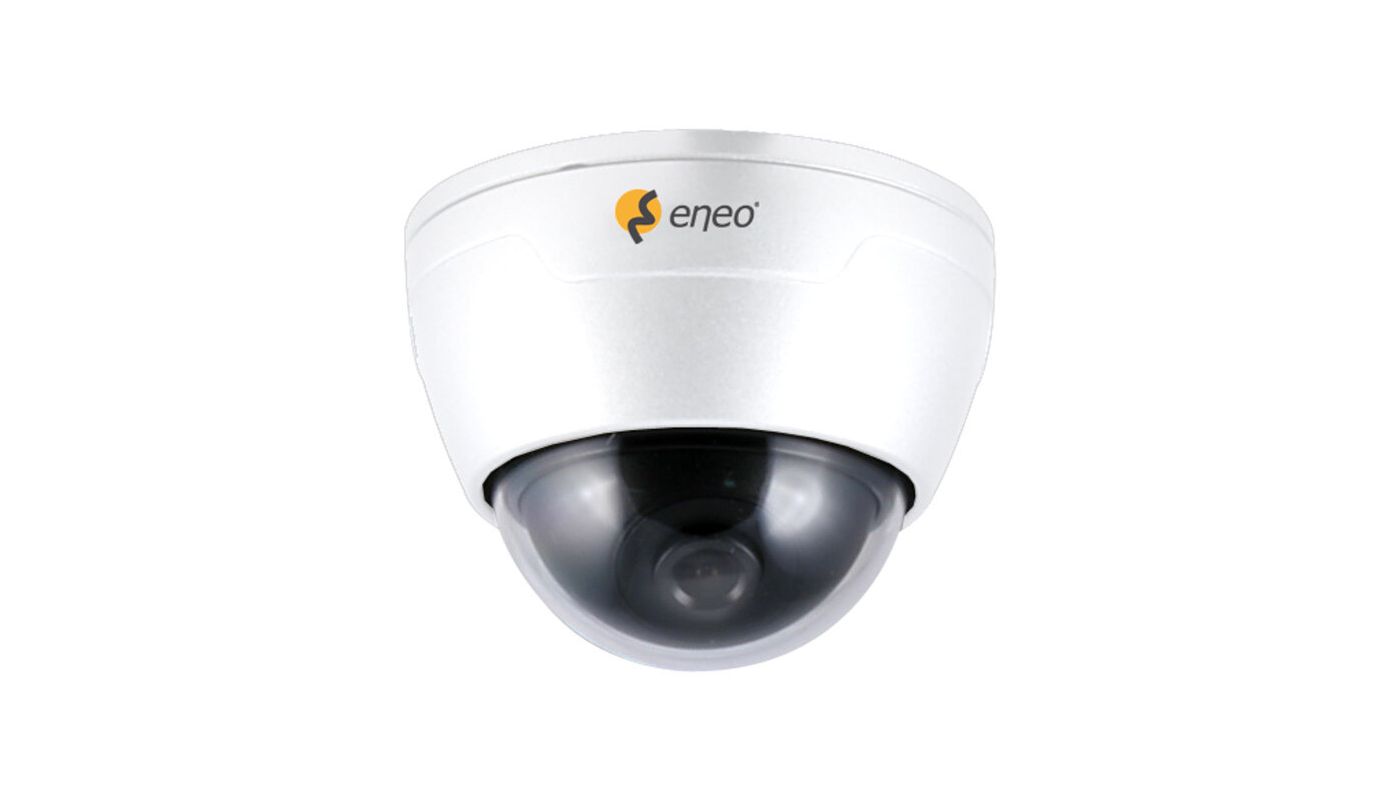

Main image
Click to view image in fullscreen
![]()
Specifications
| Manufacturer order number | 223916 |
|---|---|
| Series | eneo COAXIZE |
| Alarm inputs | 0 |
|---|---|
| Audio support | No |
| Backlight compensation | No |
| Brand | eneo |
| Camera shape | Minsters |
| Certifications | IK10 |
| Chip size | 1/3" |
| Color (dome) | clear |
| Control Interfaces | no |
| Day/night mode | Automatic |
| Day/night switching | Electronic |
| Digital Noise Reduction (DNR) | Yes |
| Dimensions (WxHxD) (extended) | 60,5x80 |
| External connections | 12VDC input (DC plug),Composite (FBAS),connection cable approx.25cm |
| Fan | No |
| Focal length | 3,6 mm |
| Heating | Yes |
| Horizontal angle of view | 68° |
| Horizontal resolution | 960 TVL |
| Housing material | Aluminium |
| Housing type | Outside |
| Identify (250px/m) | 2.8 m |
| Integrated wall mount | No |
| Lens Type | Prime lens |
| Lighting | no |
| Low Speed Shutter | No |
| Motion detector | No |
| Mounting type | Ceiling |
| Multicast | No |
| Number of alarm outputs | 0 |
| Perceiving (25px/m) | 32.2 m |
| Photosensitivity | 0,1 Lux bei F1,2,50 IRE |
| Power supply | 12VDC |
| Protection | IP66 |
| Recording sensor | CCD |
| Scope of delivery | manual,screw set,bag of screws |
| Signal-to-noise ratio | -50 dB |
| Sunshade canopy | No |
| System | Electronic Day&Night |
| Temperature Range (Operating) | -10°C ~ +50°C |
| Vandalism-resistant | Yes |
| Watch (62px/m) | 12.6 m |
| White balance | ATW |
| Wide Dynamic Range (WDR) | no |
| Zoom Factor (Digital) | 0 |
Main Features
- 1/3" Fix dome camera with Sony CCD
- Integrated lens F2.0/3.6mm
- Resolution of 960 horizontal lines
- Automatic shutter control
- Digital signal processing (DSP)
- Automatic white balance (ATW)
- White-coloured aluminium die-cast casing
- Clear Lexan bubble, 57mm
- Easy indoor installation
- For wall or ceiling mounting
- Vandal resistant
Downloads
-
Data sheet with specifications generated live from the product database
-
Technical data as Word document, generated live from the product database
-
Manufacturer data sheet (german)
-
Manufacturer data sheet (english)
-
Manual for this product (english)
