SOL-IQswitch-8MD

SKU 228522

This article is no longer available Successor: SOL-IQswitch-8MDB

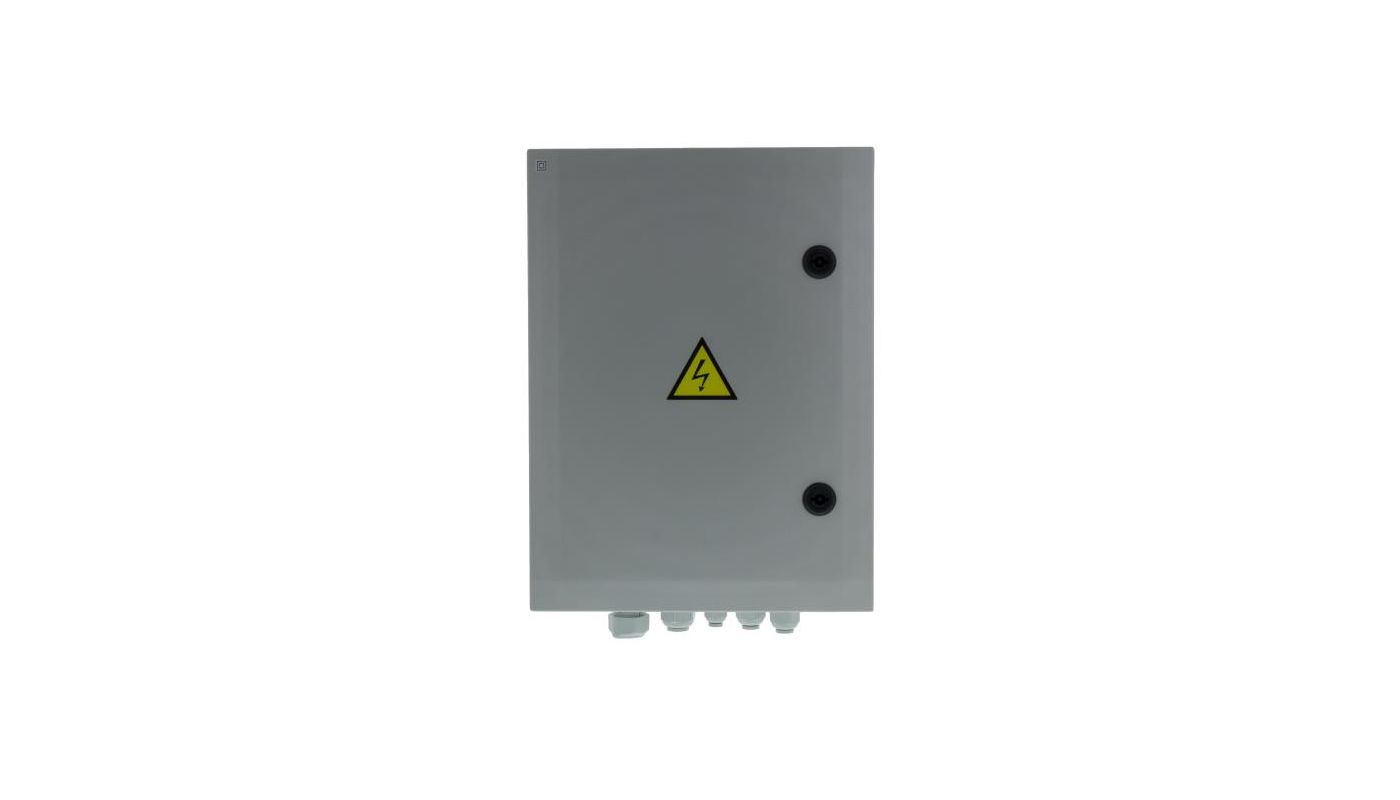

Camera junction box with 8-port Gigabit switch managed 8xPoE, 4xSFP, 1000Mbps
Data sheet

Specifications

Manufacturer order number 228522
Series Solvido IQbox
Brand Solvido
Certifications IK10
Color (housing) RAL7035
Dimension (lxwxd) 400x300x210mm
Heater optional
Hosuing material Polycarbonate
Housing Outdoor
Operating temperature -40°C ~ +70°C
Protection rating IP66
Supply voltage 230VAC

Main Features

  • Ready-made junction box solution
  • Incl. SOL-IQbox-budget-B
  • Incl. 8-port gigabit switch managed
  • Incl. Power supply unit
  • Electrically pre-wired and tested
  • Optimized for outdoor applications
  • UV stabilized polycarbonate, corrosion resistant
  • Protection class IP 66
  • Impact resistance IK 10, protected against vandalism
  • Pivotable door (with door contact switch)
  • Wall or pole mounting
  • Quick, easy installation
