SOL-IQbox-eco

SKU 215019

This article is no longer available Successor: SOL-IQbox-eco-B

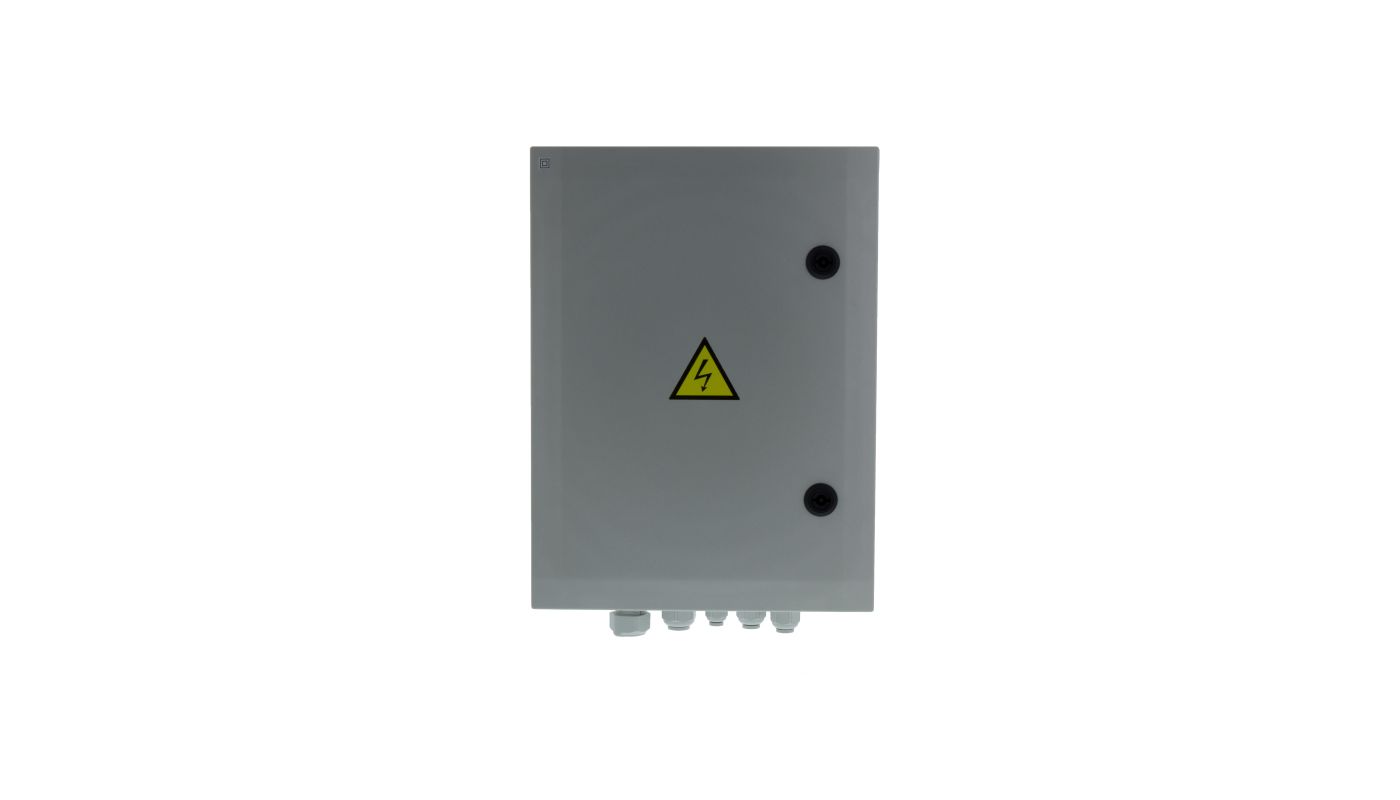

Camera junction box for video surveillance with socket FI / LS, 400x300x150mm

Specifications

Manufacturer order number 215019
Series Solvido IQbox
Brand Solvido
Certifications IK10
Color (housing) RAL7035
Dimension (lxwxd) 400x300x150mm
Heater optional
Hosuing material Polycarbonate
Housing Outdoor
Operating temperature -25°C ~ +55°C
Protection rating IP66
Supply voltage 230VAC

Main Features

  • Optimised for outdoor use
  • Electrically prewired for flexible, modular expansion.
  • UV stable polycarbonate, corrosion-resistant
  • Protective class IP66
  • Impact resistance IK 10, vandalism protected
  • Swivelling door (with door contact switch)
  • Wall or mast mounted
  • Fast, easy installation
  • Simple mechanical finishing
  • Including service socket, personal protection
  • Graduated prices on request

Downloads

  • Data sheet with specifications generated live from the product database

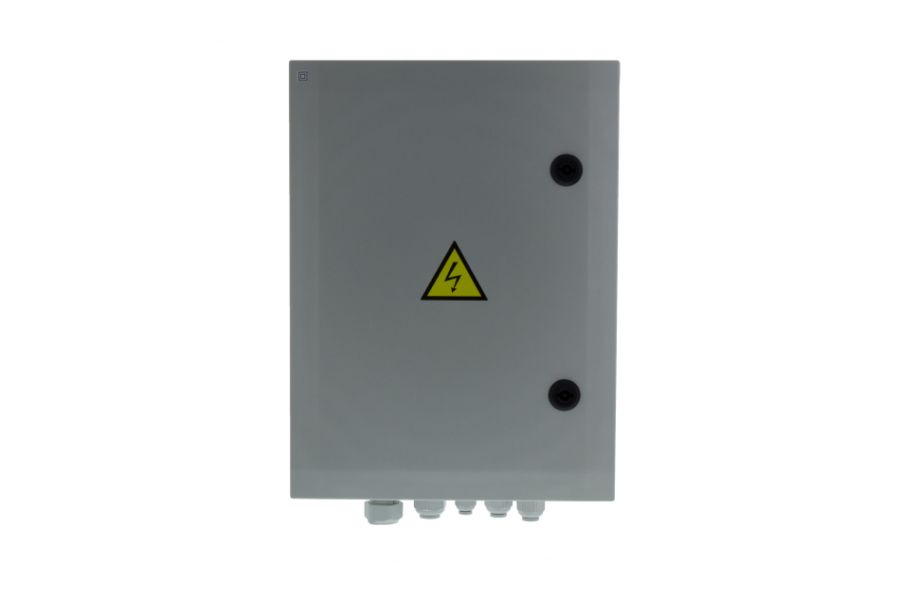

Successor Products
