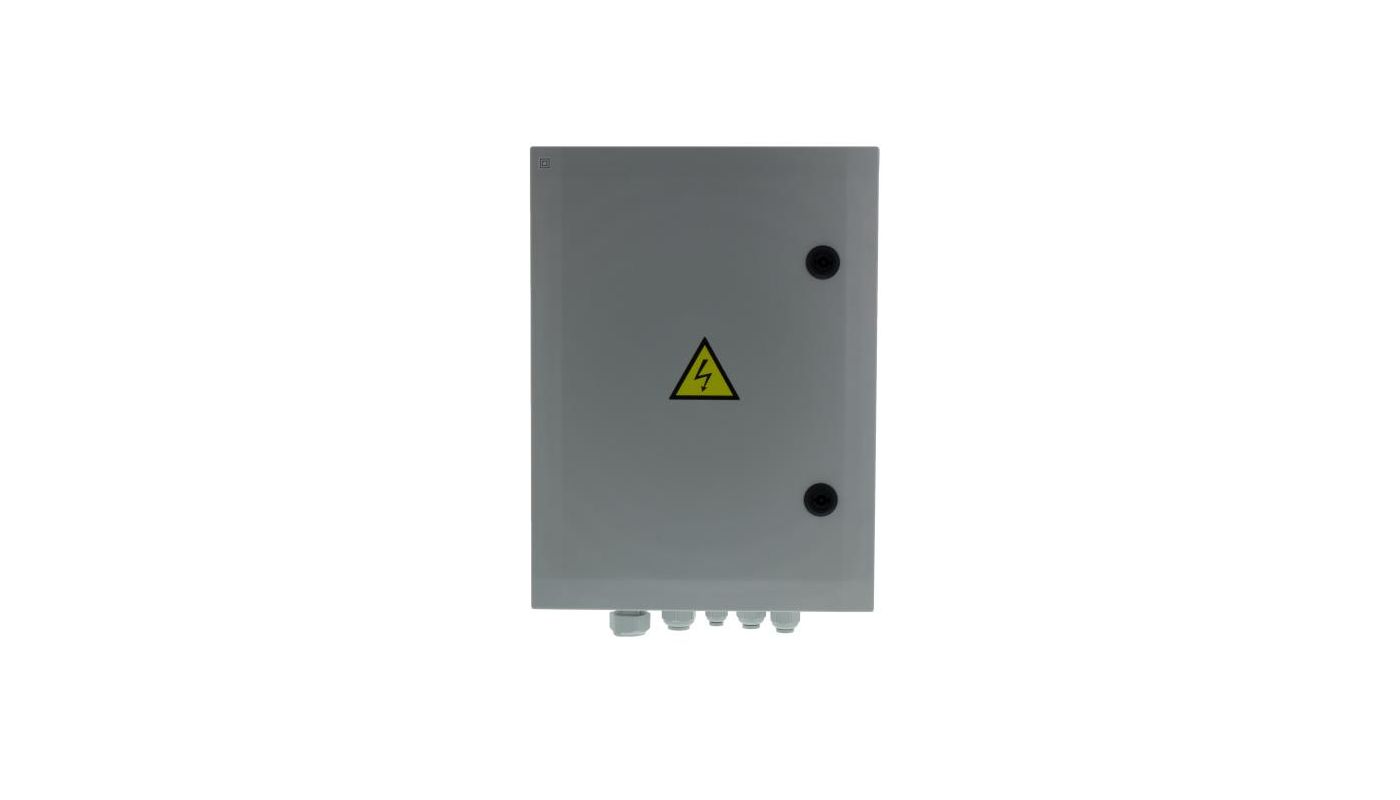

SOL-IQbox-eco-B/Hz

Camera junction box for video surveillance with socket, FI/LS and heating
SKU
220522
Main Features
  • Optimised for outdoor use
  • With extended temperature range
  • Electrically prewired for flexible, modular expansion.
  • UV stable polycarbonate, corrosion-resistant
  • Protective class IP66,
  • Impact resistance IK 10, vandalism protected
  • Swivelling door
  • Wall or mast mounted
  • Fast, easy installation
  • Simple mechanical finishing
More Information
Brand Solvido
Series Solvido IQbox
Housing outdoor
Color (housing) RAL7035
Hosuing material Polycarbonate
Heater yes
Dimension (lxwxd) 400x300x150mm
Supply voltage 230VAC
Operating temperature -40°C ~ +55°C
Protection rating IP66
Certifications IK10
Manufacturer order number 220522

to top
to top
  • Manufacturer data sheet PDF 220522_en_sup.pdf Original product information from the manufacturer 188.2 kB
  • Marketing Infos PDF SOL-IQbox Betriebsanleitung.pdf SOL-IQbox Betriebsanleitung 1.4 MB
  • Marketing Infos PDF SOL-IQbox_Konformitätserklärung_.pdf SOL-IQbox_Konformitätserklärung_.pdf 136.9 kB
  • Data sheet PDF 220522_sol-iqbox-eco-b-hz.pdf Data sheet with specifications generated live from the product database <350KB
  • Specifications text DOC 220522_sol-iqbox-eco-b-hz.doc Technical data as Word document, generated live from the product database <50KB
to top

Description
